Product Details:
|
Color: | Black White | Material: | ABS Plastic LED Power Adapter |
---|---|---|---|
Plug: | US EU UK AU Plugs | Price: | Negotiable |
Warranty: | 2 Years | Waterproof Rate: | IP68 |
High Light: | ac dc power supply wall adapter,strip light power supply |

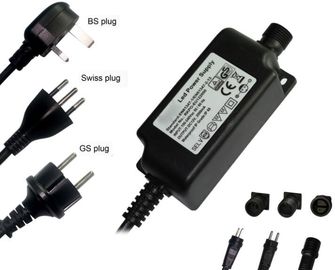

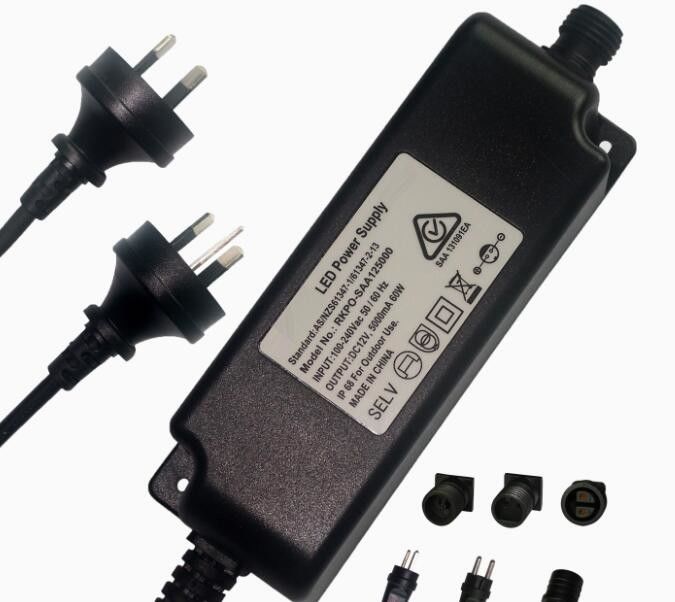

Waterproof IP68 LED power adapter supply,12v 24v 30w 60w outdoor transformer charger for CCTVs
Output Power | 5w 6w 9w 10w 12W,15w.18W |
Output Voltage | 12v |
Output current | 0.5a,0.8a, 1a,1.2a 1.25a,1.5a |
Plug | EU,US,UK,JP,AU plug |
Over Voltage Protection | 120%min |
Over Current Protection | 120%min |
Short Circuit Protection | [Auto Recovery] |
[Load Regulation] | +/-5% |
Operating Temperature | 0 to 55 centigrade degree |
Storage Temperature | -20 to 85 centigrade degree |
Operating Relative Humidity | 5%~95% RH |
Withstanding Voltage | AC 3000V(min),5mA(Max) |
No-load Power Consumption | 0.3W(Max) |
Rippel& Noise | 1% of output voltage |
[MTBF] | 50,000hours |
Application | LED, pumps, electronic appliances, electronic toys, the fountain and other products |
Certificate | GS, BS, UL, CUL, CE, EMC, SAA, PSE ,KC |
Technical Specification | Input Voltage | AC 100-240V |
Input Frequency | 50Hz/60Hz | |
Input Current | ≤400mA(AC Input Voltage 100V) | |
Dash Current | ≤35A(AC Input Voltage 240V) | |
Power Factor | ≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω) | |
Efficiency | ≥82.96% at rated voltage | |
Output Voltage | 12V±5% | |
Output Rated Current | 1A | |
Rated Power | 12W | |
Ripple Noise | ≤200mV | |
Start Delay Time | ≤3S(under the Iput-voltage of AC110V) | |
Working Temperature | 0℃ to 40℃ | |
Storage Temperature | -20℃ to 70℃ | |
Test Temperature | 25±10℃ | |
Humidity | 5%-95%(under the condition of non-concentrated) | |
Atmospheric Pressure | 70 — 106Mpa | |
Hi-pot Test | AC 3000V(Min), 3S, leakage Current≤5mA | |
Insulation Resistance | ≥10MΩ (standard atmospheric pressure, humidity 90%, DC500V) | |
Certificate | CE, FCC, ROHS, SAA, CB, GS, KC | |
Warranty | 2 years | |
Feature | IC Program Design with low power consumption | |
100% Aging Test; Virbration Test; Plug-in and Plug-out Test; ESD Test; Falling Test | ||
MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217) | ||
Overurrent Protection, Short-circuit Protection |
