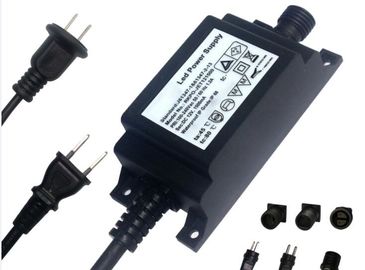

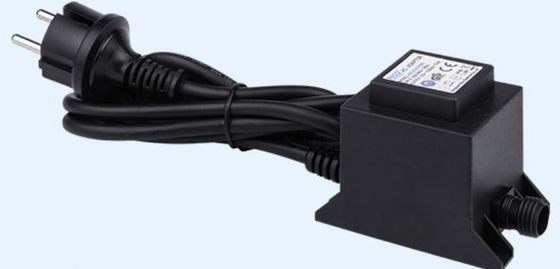

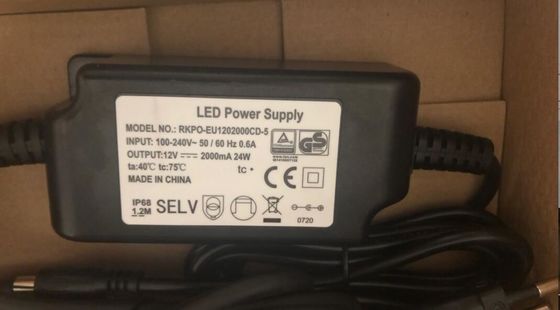

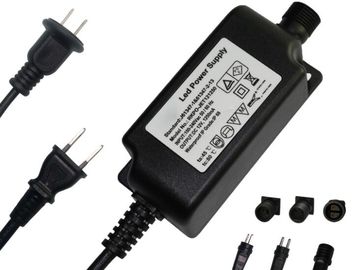

12v 2a 3a waterproof transformer class 2 power supply 24Watt IP68 power supply for electric faucets Water pump
Specification:
| Input of power adapter |
AC 100-240V (90-264V) 50/60Hz |
| output of power adapter |
12Volt 3Amp 36W (Voltage can be 3V-30V) |
Protection of power
adapter |
Over voltage protection |
| Over Current Protection |
| Short circuit protection |
| Certificates of power adapter |
CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
AC Plug of power
adapter |
UK, EU, US, AU, CN, Japan, Korea optional |
Outlet Way of power
adapter |
with cable |
Material of power
adapter |
PC fireproof plastic |
| Color Available of power adapter |
White/Black |
Compatible of power
adapter |
LED, Electronic cigarette, Tablet, Water pump, Router, CCTV camera, LCD, Motor, Fan, Toys |
| Medical machine, POS machine, Beauty & Health equipment, Humidifier,LED lights,Minitor,Fans. |
Input Voltage:
Rated Voltage:100~240Vac
Variation Range:90-264Vac
Input Frequency:Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.3Amps max At any input voltage and rated, DC output rated load.
Inrush Current:20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient
Ac Leakage Current:0.25mA Max.At240Vac input.
Packing:
Packaging Details:White Box+Carton or as customer's requirement.
Size:49.5*42*16.5CM
Qty:20PCS/Carton (including C14 Cable)
Weight:16kg/ Carton
Package : Carton and White Box
OEM Package Design
Turn on delay time:
3Second Max.at 115Vac input and output Max.load
Efficiency: 68% Min, At 115/230Vac input voltage, full load calculation
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~170%.
Output short circuit protection:
When the output load short-circuit, the power supply will protect, troubleshooting can resume normal work.
ENVIRONMENTAL REQUIREMET:
Operating Temperature:0℃ to 40℃,Full load, Normal operation.
Storage Temperature:-10℃ to 80℃
Relative Humidity:5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.
Vibration:Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm (9~200Hz,Acceleration 5m/S2)
Transportation: IEC 721-3-2 2M2 5-9Hz,A=3.5mm
Acceleration=5m/S2 Acceleration=15m/S2
