Product Details:
|
| Certificates Of Power Adapter: | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH | Output: | 24V 5W 6W 12W 25W 30W 60W |
|---|---|---|---|
| Current: | 0.5a 1a 2a 2.5a 3a 5a | Avaiable: | CCTVs LCD Monitor LED Lights |
| Material: | PC Fireproof | Waterproof: | IP68 |
| High Light: | ac dc power supply wall adapter,led strip light adapter |
||

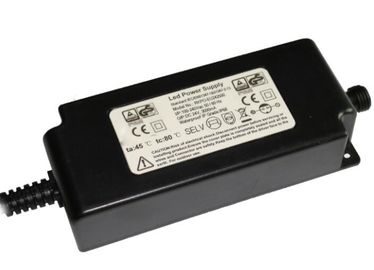

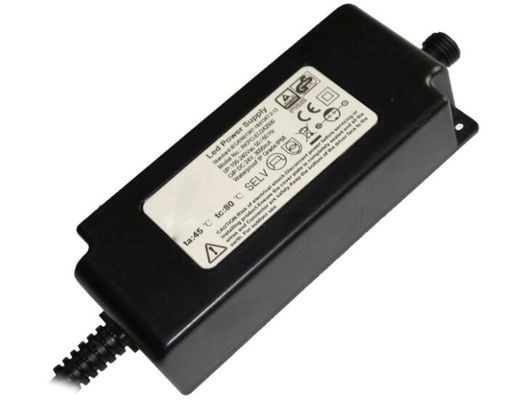

24v 1a 24w IP68 LED power adapter,outdoor switching power supply for CCTVs UL CE
Environmental requirement of ac dc adapter:
1. operating temperature: 0-40
2. storage temperature: -20-85
3. opera ting relative humidity:595%RH
4. Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5. Insulation resistance: DC 500V 100MΩ (minimum)
BASIC TERMS of ac dc adapter:
MOQ (Min Order Qty): 40 Units / 1 Carton
Lead-Time: 7-10 Working Days Normally
Warranty Period: 15-24 Months
Supply Capability: 10,000 Units Per Working Day
Payment Methods: T/T, Paypal, Western Union, L/C
Shipping Mode: Express Courier, Air, Sea
Description ac dc adapter:
1. Universal input voltage
2. UL/CUL, PSE, GS,CE, CB, FCC,KC
3. 10Years Experience Factory
4. High efficient more than 85%
5. 2 years warranty
6. High quality,best price
7. Punctual and Fast delivery
Advantages of ac dc adapter:
1. input voltage: AC 100-240V 50/60HZ
2. range voltage: AC 90-264V 47/63HZ
3. High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave
SAFETY & LEAD-FREE:
UL/CUL, PSE, GS, BS, CE, CB, FCC,SAA
Protections of ac dc adapter:
1. over voltage protection: 120%min
2. over current protection: 120%min
3. over protection
4. Short-circuit protection: automatic recovery
5. Load regulation: ±5%
| Output Power | 5w 6w 9w 10w 12W 15w 18W |
| Output Voltage | 12v |
| Output current | 0.5a,0.8a, 1a,1.2a 1.25a,1.5a |

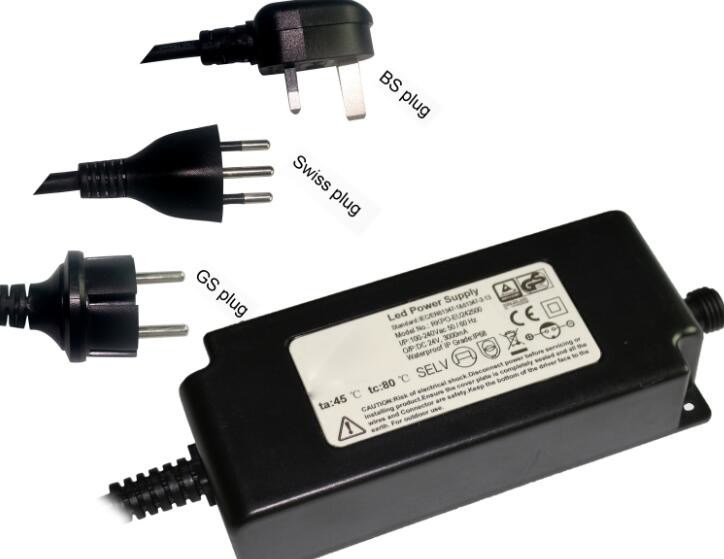

| Plug | EU,US,UK,JP,AU plug |
| Over Voltage Protection | 120%min |
| Over Current Protection | 120%min |
| Short Circuit Protection | [Auto Recovery] |
| [Load Regulation] | +/-5% |
| Operating Temperature | 0 to 55 centigrade degree |
| Storage Temperature | -20 to 85 centigrade degree |
| Operating Relative Humidity | 5%~95% RH |
| Withstanding Voltage | AC 3000V(min),5mA(Max) |
| No-load Power Consumption | 0.3W(Max) |
| Rippel& Noise | 1% of output voltage |
| [MTBF] | 50,000hours |
| Application | LED, pumps, electronic appliances, electronic toys, the fountain and other products |
| Certificate | GS, BS, UL, CUL, CE, EMC, SAA, PSE ,KC |
