Product Details:
|
| Price: | Negotiable | Color: | Black White |
|---|---|---|---|
| Power: | 5W 6W 12W 15W 25W 30W 60W | Material: | ABS Plastic |
| Output: | 12v 24V 0.5a 1a 1.25a 2a 3a 5a | Waterproof Rate: | IP68 |
| Warranty: | 2 Years | Plug: | US EU UK AU Plugs |
| High Light: | ac dc power supply wall adapter,strip light power supply |
||

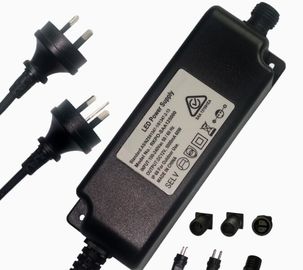

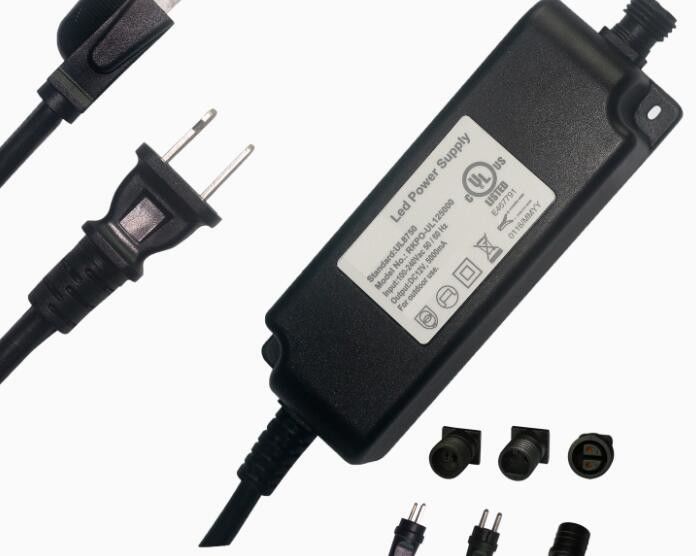

12w 24w 36w LED power adapter supply,outdoor Waterproof IP68 transformer charger
| Input of power adapter | AC 100-240V (90-264V) 50/60Hz |
| output of power adapter | 12V 18W 25W 30W 36W (Voltage can be 3V-30V) |
| Protection of power adapter |
Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates of power adapter | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug of power adapter |
UK, EU, US, AU, CN, Japan, Korea optional |
| Outlet Way of power adapter |
with cable |
| Material of power adapter |
PC |
| Color Available of power adapter | White/Black |
| Compatible of power adapter |
LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
| Medical machine, POS machine, Beauty & Health equipment, Humidifier,LED lights,Minitor,Fans. |
Input Voltage: Rated Voltage:100~240Vac
Variation Range:90-264Vac
Input Frequency:Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.3Amps max At any input voltage and rated, DC output rated load.
Inrush Current:20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient
Ac Leakage Current:0.25mA Max.At240Vac input.
Turn on delay time:
3Second Max.at 115Vac input and output Max.load
Efficiency: 68% Min, At 115/230Vac input voltage, full load calculation
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~170%.
Output short circuit protection:
When the output load short-circuit, the power supply will protect, troubleshooting can resume normal work.
ENVIRONMENTAL REQUIREMET:
Operating Temperature:0℃ to 40℃,Full load, Normal operation.
Storage Temperature:-10℃ to 80℃
Relative Humidity:5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.
Vibration:Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm (9~200Hz,Acceleration 5m/S2)
Transportation: IEC 721-3-2 2M2 5-9Hz,A=3.5mm
Acceleration=5m/S2 Acceleration=15m/S2
Axes,10 cycles per axis. No permanent damage may occur during testing.
The SAMPLE has to restore to its original situation after power off/on.
Technical Specification:
Condition: 100% Brand New
Input: 100 to 240V AC,1.0-0.6A, 50 to 60Hz
Protection: over-current, voltage and auto recovery
Output protection: over-load and short-circuit protection
AC inlet: plug-in type
Input inrush current (cold): 30A / 230V AC
Input leakage current: <0.5ma / 230V AC
Power adjustment rate (full load): ≤ 0.5%
Load Regulation: ≥ 1%
Output stability: 0.5% typ.
Output voltage micro-adjustment range: ± 10%
Output ripple (resistive load): 100mVp typ
Output Overload: 115% ~ 150%
Insulation Strength: Class A
