Product Details:
|
| Plug: | US EU UK AU Plugs | Material: | ABS Plastic |
|---|---|---|---|
| Power: | 6W 12W 15W 25W 30W | Output: | 12v 0.5a 1a 1.25a 2a 3a |
| Waterproof Rate: | IP68 | Warranty: | 2 Years |
| High Light: | strip light power supply,led strip light adapter |
||

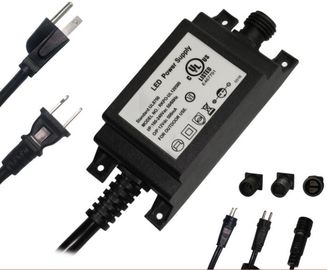

12v 0.5a 1a IP68 waterproof LED power adapter,US EU UK AU transformer power supply
Input Voltage: Rated Voltage:100~240Vac
Variation Range:90-264Vac
Input Frequency:Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.3Amps max At any input voltage and rated, DC output rated load.
Inrush Current:20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient
Ac Leakage Current:0.25mA Max.At240Vac input.
| Input of power adapter | AC 100-240V (90-264V) 50/60Hz |
| output of power adapter | 12V 1.5A 18W (Voltage can be 3V-30V) |
| Protection of power adapter |
Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates of power adapter | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug of power adapter |
UK, EU, US, AU, CN, Japan, Korea optional |
| Outlet Way of power adapter |
with cable |
| Material of power adapter |
PC |
| Color Available of power adapter | White/Black |
| Compatible of power adapter |
LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
| Medical machine, POS machine, Beauty & Health equipment, Humidifier,LED lights,Minitor,Fans. |
Vibration:Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm (9~200Hz,Acceleration 5m/S2)
Transportation: IEC 721-3-2 2M2 5-9Hz,A=3.5mm
Acceleration=5m/S2 Acceleration=15m/S2
Axes,10 cycles per axis. No permanent damage may occur during testing.
The SAMPLE has to restore to its original situation after power off/on.
SAFETY REQUIREMENT:
Safety: accord with SAA AS/NZS61347-1&61347-2-13
DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:3000Vac5mA/3S for type test.
EMI STANDARD
Meets the Limits of:
Fcc part15
EN55015
GB9254-1998,GB17625.1-2003
