Product Details:
|
| Output: | 12v 9v 5v | Power: | 3W 5W 6W 12W |
|---|---|---|---|
| Material: | ABS Plastic | Certificates: | UL CUL TUV GS CE SAA PSE |
| Warranty: | 3years | Waterproof: | IP44 |
| Available: | LED Lights CCTV Camera | Plug: | UK US AU EU |
| High Light: | ac dc power supply wall adapter,strip light power supply |
||

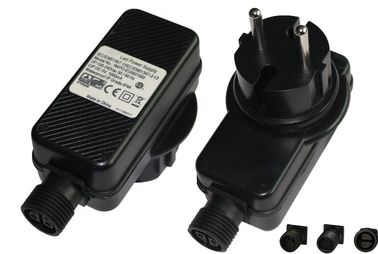

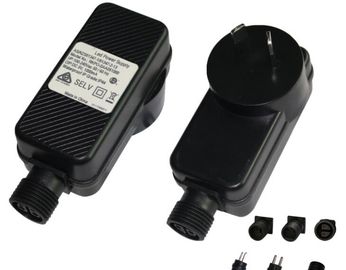

12v 9v 5v 500mah LED power adapter waterproof IP44 rate,waterproof power supply
| Input: | AC 100-240V (90-264V) 50/60Hz |
| output: | 3-30V DC 100-1200 mA |
| Protection | Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug | UK, EU, US, AU, CN, Japan, Korea optional |
| Outlet Way | with cable |
| Material | PC |
| Products Size | 76mm*50mm*38mm |
| Color Available | White/Black |
| Compatible : | LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
| Medical machine, POS machine, Beauty & Health equipment, Humidifier,LED lights,Minitor,Fans. |
The delivery time is strarting from we confirm the payment.
In case of delay the delivery,so hope you charge it as soon as possible .
Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,
not uncertain.
Some delivery time as follow:
|
Qty (pcs) |
Delivery Time (working days) |
|
less than 100 |
5-7 |
|
100-800 |
7-10 |
|
800-3K |
10-12 |
|
3K-10K |
15-18 |
|
10K-20k |
20-22 |
|
Data is a reference for buyer, Specification situation will be given to you after asking us. |
|
|
Remark |
|
|
1.Samples (less than 10pcs) can be provied, lead time with 3days. |
|
|
2.Please carefully check all the details before you take a order. |
|
Input Voltage: Rated Voltage:100~240Vac
Variation Range:90-264Vac
Input Frequency:Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.3Amps max At any input voltage and rated, DC output rated load.
Inrush Current:20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient
Ac Leakage Current:0.25mA Max.At240Vac input.
DC plug/jack/connector:
Outer diameter * Inner diameter* Length (O.D*I.D*L),straight and right angle
1)5.5*2.5*12mm;
2)5.5*2.1*10mm;
3)4.0*1.7*10mm;
4)2.5*0.7*8mm;
5) micro usb;
6) mini usb;
Turn on delay time:
3Second Max.at 115Vac input and output Max.load
Efficiency: 68% Min, At 115/230Vac input voltage, full load calculation
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~170%.
Output short circuit protection:
When the output load short-circuit, the power supply will protect, troubleshooting can resume normal work.
ENVIRONMENTAL REQUIREMET:
Operating Temperature:0℃ to 40℃,Full load, Normal operation.
Storage Temperature:-10℃ to 80℃
Relative Humidity:5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.
Vibration:Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm (9~200Hz,Acceleration 5m/S2)
Transportation: IEC 721-3-2 2M2 5-9Hz,A=3.5mm
Acceleration=5m/S2 Acceleration=15m/S2
Axes,10 cycles per axis. No permanent damage may occur during testing.
The SAMPLE has to restore to its original situation after power off/on.
SAFETY REQUIREMENT:
Safety: accord with SAA AS/NZS61347-1&61347-2-13
DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:3000Vac5mA/3S for type test.EMI STANDARD
