Product Details:
|
| Warranty: | 2 Years | Packaging: | Neutral White Box |
|---|---|---|---|
| Output: | 12V 8a 10A 120W | Input: | 100~240V Ac Input |
| Certificates: | CE Rohs FCC UL ETL SAA | Material: | ABS Plastic PC |
| Ripple And Noise: | 100mvp-p | Used For: | LED Strips CCTVs |
| High Light: | strip light power supply,led strip light adapter |
||

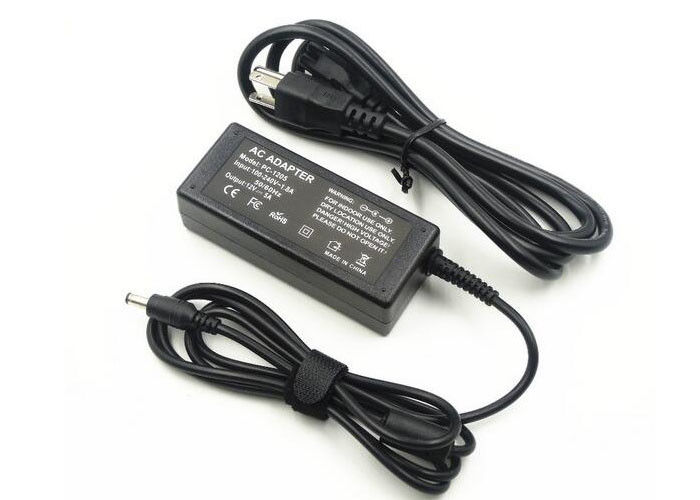

LED AC DC power adapter 12V 3A 5A 8A 10A 120W with UL CE marked for LED strips
| Input voltage range | 100-240VAC |
| Input Frequency | 50-60Hz |
| Total Output Power | 5-12W |
| Output Voltage | 3-12V |
| Output Current | 10-1000mA |
| Withstanding Voltage | AC3000(Max),5mA(Max) |
| Insulation Resistance | DC500V,100MΩ(Min) |
| Operation Temperature | 0 ℃~50 ℃ |
| MTBF | 30000hrs full load |
| Protection | OCP,OVP,SCP |
| Applications: | Suitable for mobile phone, MP3/MP4 players, toy, router, |
| laptop computer, CCTV or digital camera, cameras, | |
| LED and light bar power supplies & more | |
| Reliability | Performance: wall-mount / desktop/metal case |
| Average fault-free times under 25°C ambient temperatures maximum working load | |
| Average fault-free time 50,000 hours (As per GB4943-2001, IEC60950 standards) | |
| Constructions |
AC plugs: North American/European/Australian/British standard DC plugs:5.5mm (0.22-inch) in outside diameter 9.5mm (0.37-inch) in length. |
|
Contact: Pin sizes- 2.1mm (0.083-inch)/2.5mm (0.098-inch) Brass with Ni plating Shell: High temperature plastic |
|
| Conductors: 32 - 16 AWG.Solid or stranded, tinned or bare copper | |
| Insulation: | Color coded PVC or SR-PVC |
| Tests |
Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80- 100% rated load at 40±5°C Height: 1m, the product should be fall off on the hardwood with the thickness of 20mm and the hardwood shall be put on the base of the cement or on the ground without flexibility Apply two times on all surface |
| Jacket: | flame-retardant PVC |
| Electrical characteristics: |
Insulation resistance: ≥1,000MΩ |
| Center contact resistance: ≤10MΩ | |
| Outer contact resistance: ≤5MΩ | |
|
Frequency range: 1GHz/DC Withstand voltage: 500V RSM |
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 1-3 days, mass production time needs 4-7 workdays for order less than 1000 pcs.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 50 pcs.
Q: 4. Do you accept OEM services?
A: Yes, we accept and produce as your requests .
Q: 5. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days.
Q: 6. Do you accept to put our label on the products or box ?
A: Yes, we do.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer 1 or 2years guarantee for different products.
Q: 8. Do you accept drop shipping?
A: Yes, warm welcome.
