Product Details:
|
| Color: | White | Output: | 12volt 60Watt |
|---|---|---|---|
| Waterproof: | IP67 | Material: | Aluminum Alloy |
| Constant Voltage: | Yes | Warranty: | 2 Years |
| High Light: | ac dc power supply wall adapter,led strip light adapter |
||
60w 12v waterproof led driver 110-220v ac to dc power supply for outdoor/indoor led module light
Specifications for wateroof led power for 12v60w:
| Model | FS-60 | FS-60 | |
| Input | voltage | AC 90-265v | AC 90-265v |
| frequency | 50HZ | 50HZ | |
| Output | voltage | 12v | 24v |
| current | 5A | 2.5A | |
| Output voltage can be adjusted ±10% | |||
| PF | 0.6 | 0.6 | |
| Efficiency | 84% | 88% | |
| Size | 235*35*25mm | ||
| Protection | overload | 105% - 150% rated power, automatic recovery | |
| over voltage | 105% - 150% of the rated voltage | ||
| Environmental | working tempreture | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | |
| Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | ||
| height above sea level | leq2000M | ||
| Warranty Time | 2 Years | ||

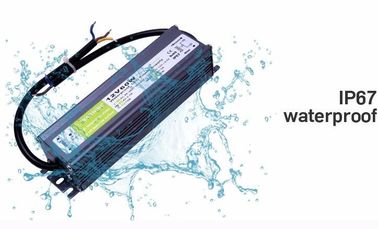

1.IP67
2.High Efficiency and good price
3..100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.life time warranty
Quick Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Anenerge
Model Number: AE-12V60Watt
Input Voltage: AC90-260V
Output Voltage: 12V
Output Power: 60W
Output Frequency: 47-63Hz
Output Current: 5A
Product name: 60w 12vdc waterproof led driver
Dimension: 142*40*35mm
Warranty: 2 Years
Certificate: CE ROHS approved
Application: LED Strip, led bar, led module light, led mirror light
Feature: sample order acceptable, OEM&ODM servive
MOQ: 1pcs
Material: Aluminum Alloy, silicon gel
Protection: short circuit/over load/over voltage
