Product Details:
|
| Material: | Aluminum Alloy | Output Power: | 200Watt 12volt |
|---|---|---|---|
| Output Current: | 16.7 Amp | Size: | 240*69*43MM |
| Warranty:: | 3 Years | Waterproof: | IP67 |
| High Light: | ac dc power supply wall adapter,led strip light adapter |
||

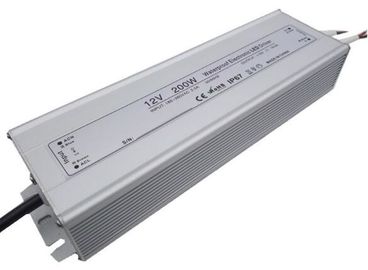

240vac to 12v olt dc led power supply, 200W waterproof led transformer with 230v AC input,CE Rohs FCC
Place of Origin: Guangdong, China (Mainland)
Brand Name: Anenerge
Model Number: AE-24-200W
Output Power: 200W
Output Type: Dual
Input Voltage: 110-240VAC
Output Voltage: 24VDC
Output Frequency: 47-63HZ
Output Current: 8.3A
Size: 240*69*43MM
Warranty: 5 Years
Certification: CE ROHS TUV
Application: LED Lighting
Type: Constant Voltage
Protections: Short Circuit Overtemp Overload Overvolt
Efficiency: 88%
Waterproof: IP67 Level
Material: Aluminum Alloy
Features:
*Constant Voltage mode LED power supply
*Universal AC input/full range
*withstand 3750V surge voltage
*PF>0.98,Effciency>88% @full loda
*Available for customizing output current/voltage
*Protections :Short Circuit/Over Load/Over Voltage/OverTemperature
*Fully encapsulated with IP67 level
*2-3 times bum-in teste wiht 100% full toad for more than 24 hours
*Rubycon/NCC capacitor,5 years warranty
|
Model
|
AE-12-200W
|
AE-24-200W
|
|
DC output voltage
|
12V
|
24V
|
|
Output voltage error
|
±1%
|
±1%
|
|
Rated output current
|
16.7A
|
8.3A
|
|
Output current range
|
0~16.7A
|
0~8.3A
|
|
Wave and noise
|
150mVp-p
|
150mVp-p
|
|
Inlet stability
|
±0.5%
|
±0.5%
|
|
Load stability
|
±0.5%
|
±0.5%
|
|
DC output power
|
200W
|
200W
|
|
Efficiency
|
85%
|
85%
|
|
AC input voltage range
|
170 ~ 264VAC
|
|
|
Input current
|
2.7A/115V 1.35A/230V
|
|
|
AC impulse current
|
Cold-start current 13A/115V 26A/230V
|
|
|
Leakage current
|
<3.5mA/240VAC
|
|
|
Over load protection
|
105%~150% rated output power
|
|
|
|
Protection:Hiccup mode
|
|
|
Over voltage protection
|
15.8~18V
|
30.6~33.6V
|
|
|
Protection:Shut down output voltage
|
|
|
short circuit protection
|
Protection:Hiccup mode
|
|
|
Temperature coefficient
|
±0.03%(050)
|
|
|
Setup rise hold up time
|
200ms,100ms,30ms
|
|
|
Vibration
|
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
|
Withstand voltage
|
I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
|
|
|
Working temperature and humidity
|
-10~+60°C, 20~90%RH
|
|
|
Store temperature and humidity
|
-20~+85°C, 10~95%RH
|
|
|
Overall dimension
|
240×69×43mm
|
|
|
Weight
|
2.4Kgs
|
|
|
Safety standards
|
Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
|
|
|
EMC
|
EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547
|
|
