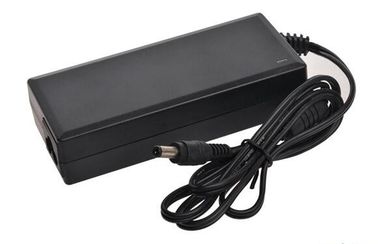

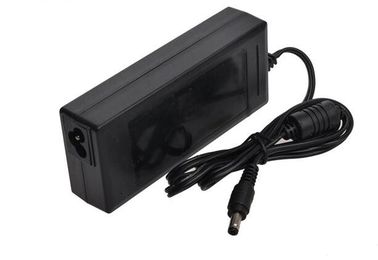

Product Details:
|
| Output: | 12Volt 8Amp | Power: | 96watt |
|---|---|---|---|
| Available: | CCTV Cameras LED Lights | Warranty: | 2years |
| Ripple Noise: | 120mvp | Price: | Negotiable |
| High Light: | ac dc switching adapter,ac dc portable power adapter |
||
Specification:
1. Input: AC 100-240V 50/60HZ
2. Output: 12V 8A 96W
3. Plug option: AU EU UK US AUS CN
4. Inlet type: C6 C8 C14
5. AC/DC cable length: 1.2M/1.5M
6. Size:138*60*34mm
7. DC Jack size: 5.5*2.5mm or 5.5*2.1mm
8. MOQ: 500pcs
9. Package: white box+carton
10. Delivery:1-3 workdays for samples
11. Warranty: 3 years
12. Certification: UL/CUL CE CB FCC GS TUV PSE ROHS SAA KC
| Input Characteristics | Rated Voltage | 100~240Vac |
| Variation Range | 90-264Vac | |
| Rated Frequency: | 50/60Hz | |
| Variation Frequency | 47-63Hz | |
| AC Current | 1.8Amps max | |
| AC Leakage Current | 0.25mA | |
|
Output Characteristics
|
12V 8A 96W | |
| Ripple and Noise: | 120mV p-p | |
| Turn- on Delay Time | 2Seconds Max.at 115Vac input and output Max.load | |
| Rise time | 40 mS Max.at 115Vac input and output Max load | |
| Hold-up Time | 5 mS Min.at 115Vac input and output Max.Load | |
| Efficiency | 80% Min, At 115/230Vac input voltag | |
| Output Overshoot/ Undershoot | 10% max | |
| Protection | over voltage protection: | 120%min |
| over current protection: | 120%min | |
| Short-circuit protection: | automatic recovery | |
| Operation Temperature | 0°C to 40°C | |
| Environment Requirements | Storage Temperature | -20°C to +80°C |
| Relative Humidity | 5%(0°C )~90%(40 °C)RH | |
| Operating: | IEC 721-3-3 3M3 | |
| Vibration | Transportation: | IEC 721-3-2 2M2 |
| Axes,10 cycles per axis. | ||
|
Dropping Packed
|
1M for wall mount type and 760mm for desktop type as above described | |
|
Reliability Requirements
|
Burn-in | 2 hours under normal input and 80%rated load at 30°C ±10°C |
| MTBF Qualification | at least 50,000 hours at 25°C | |
| Mechanical Requirement | Enclosure | size: L138xW60xH34mm |
| Input Connector | C14 C6 C8 | |
