Product Details:
|
| Material: | ABS Plastic | Output: | 9V 1A |
|---|---|---|---|
| Plugs: | EU UK AU US | Available: | CCTV Camera LED Strips Pinters Toys |
| Input: | 90~220v AC Input | Warranty: | 2 Years |
| High Light: | 12v universal power supply,12 volt power supply adapter |
||

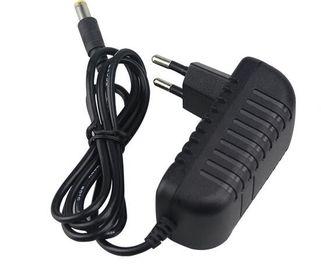

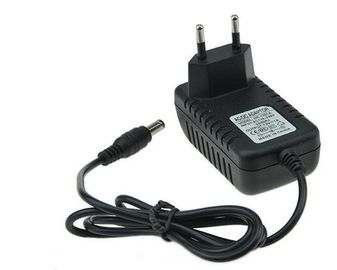

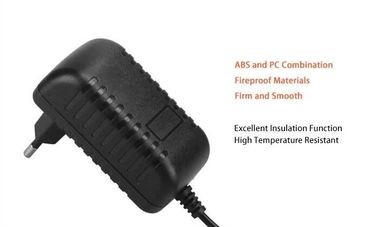

Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Place of Origin: Guangdong, China (Mainland)
Brand Name: Anenerge
Model Number: AE-090109
Output Power: 1 - 50W
Output Type: Single
Input Voltage: 90V-240V
Output Voltage: 9v
Output Frequency: 47-63HZ
Output Current: 1A
Dimension: 75*28*45MM(L'W'H')
Weight: 0.075Kg
Color: Black
Shell material: Plastick
Certificate: CE,RoHS
Safety compliance: EMC & LVD UL
Connector: 5.5*2.1MM
DC cable: 1.2M
Type: power adaptor
Features:
Output power:9V DC MAX
Protections: Short circuit/Over load/Over voltage
100% full loading burn-in test
2 years warranty
| Oupt power range | 9V 1A |
| The adapter size | 75*28*45MM(L'W'H') |
| The adapter weight | 0.075g/pcs |
| Input Rated Voltage | 86Vac~264Vac |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | less than 0.5A |
| Input Inrush Current | less than 50A |
| Efficiency | 80%(MIN)at Rated Voltage |
| DC Output Voltage | 9V± 5% |
| DC Output Current | 1A |
| DC Output Power | 9W |
| Leakage Current | less than 1mA |
| Standby power | less than 0.5w |
| DC connector | 5.5*2.1*11mm (optional) |
| DC cable | 1.2m cable (optional) |
| Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
| Turn On Delay Time | less than 3S (AC:110V and full load) |
| Certificates | CE GS UL/CUL FCC ROHS |
| Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
| Safety protection | output voltage protection (150%-180% rated output current) |
| output current protection (150%-180% rated output current) | |
| short current protection | |
| Operating Temperature | 0°C - +55°C |
| Storage Temperature | -20°C - +85°C |
| Certificates | CE GS UL/CUL FCC ROHS |
