Product Details:
|
| Output: | 42Watt 12v 3.5a | Power: | 42watt |
|---|---|---|---|
| Available: | LCD Machine CCTVs | Name: | Ac Dc Switching Adapter |
| Ripple Noise: | 120mvpp | Warranty: | 2 Years |
| High Light: | ac dc switching adapter,ac to dc power supply adapter |
||

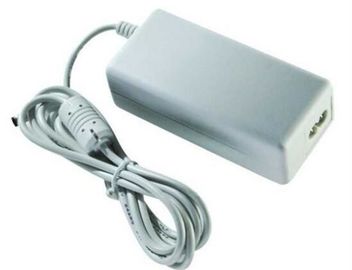

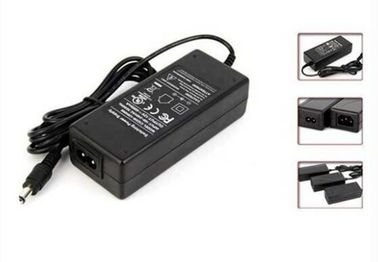

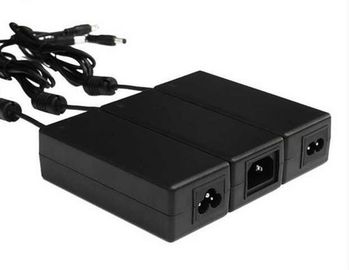

100Vac 240Vac 50 60Hz desktop power Adapter 12V 3.5A 42W AC DC power supply
Applications:
100-240Vac 50-60Hz AC DC Adapter 12V 3.5A KC
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.
Description:
1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Competitive Advantage:
1 Personal digital charger : smartphone/tablet usb charger, car charger,interchangeable charger.
2 Security power adapter: CCTV power adaptor 12v , access control systems power adapter.
3 Lighting power supply: LED light power supply, LED strips power supply.
5 Telecommunications power converter: router/hub CE KC SAA PSE adapter 12v 1a ,set top box power converter.
4 A&V power supply: Speaker power supply, DVD plyer power supply
| Input parameter | Input voltage | AC100V---240V | ||
| Input frequency | 50-60Hz | |||
| Input surge | 20A@120VAC 40A@230VAC | |||
| Output parameter | Output voltage can be adjusted | ±10% | ||
| Start-up time | <1S(input230V Io=100%) | |||
| keep time | >20mS (input230V,Io=100%) | |||
| Voltage regulation | (Full load) <0.5% | |||
| Protection function | Overload protection | 105% - 150% rated power, automatic recovery | ||
| Over-voltage protection | 105% - 150% of the rated voltage | |||
| Insulation intensity | Input---output | 1500VAC/1min | ||
| Input---ground | 1500VAC/1min | |||
| Safety standards | According with GB4943, UL60950-1,EN60950-1 standards. | |||
| EMC standards | According with GB9254, EN55022 class A EN61347-2-13:2008 standards | |||
| Environmental | working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | ||
| Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | |||
| Product model | output specification | ripple, noise | efficiency | |
| AE-12035000 | 12V | 3.5A | 100mV | 85% |
