Product Details:
|
| Output: | 12V 3a 5a 36a 60W 120W | Material: | ABS+PC Material |
|---|---|---|---|
| Ripple And Noise: | 120mvp-p | Color: | Black Or White |
| Plug: | EU US UK AU CN | Warranty: | 2 Years |
| High Light: | switching power adapter,ac dc portable power adapter |
||

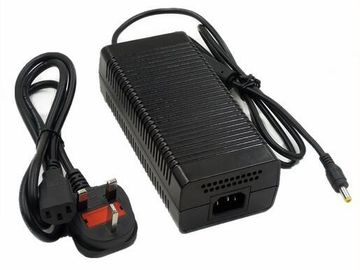

12V AC DC power adapter 36W 60W 96W 120W UK EU desktop power adapter for LED strips100~240v input with UL CE marked
Speficication:
| Output | DC Voltage | 12V | 24V | ||||||||
| Rated current | 10A | 5A | |||||||||
| Current range | 0-10A | 0-5A | |||||||||
| DC power | 120W | 120W | |||||||||
| Ripple and noise | 100mVp-p | 100mVp-p | |||||||||
| Intet stability | ±0.5% | ±0.5% | |||||||||
| Load stability | ±1% | ±1% | |||||||||
| Intput | AC voltage range | AC100~240V 47~63Hz | |||||||||
| Efficiency | 77% | ||||||||||
| Leakage current | < 0.5mA/240VAC | ||||||||||
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||||||||
| Over voltage | 13.8~16.2V | 28.8-33.6V | |||||||||
| 200ms,100ms,30ms | |||||||||||
| Safety | Setup,rise,hold up time | 200ms,100ms,30ms | |||||||||
| Vibration | 10~500Hz,2G 10min,/1 cycle | ||||||||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | ||||||||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||||||||
| Environment | Temperature coefficient | ±0.03%/°C (0~50°C ) | |||||||||
| Working temperature and humidity | -10°C ~+60°C,20%~90%RH | ||||||||||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | ||||||||||
| Other | Overall dimension | 129*55*29 mm | |||||||||
| Weight | 0.6Kg | ||||||||||
| Certificate | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | |||||||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | |||||||||||
Output Power: 120W
Output Type: Single
Input Voltage: 110V/220V
Output Voltage: 12V
Output Frequency: 50/60Hz
Output Current: 10A
MOQ: 1pcs
Protection: Short Circuit/Over Load/Over Voltage
Size: 129*55*29mm
Warranty: LIFETIME WARRANTY
Application: CCTV Camera,LEDs,3D printer,Machines
Weight: 0.6KG
Case material: plastic
Payment: T/T,Paypal,Credit card,O/A,Western Union
Packing: White Box,Brown Box
