Product Details:
|
| Input: | 100~240v Ac Input | Output: | 12V 3a 5a 36a 60W 120W |
|---|---|---|---|
| Material: | ABS+PC Material | Packaing: | 50pcs/ctn |
| Plug: | EU US UK AU CN | Certificates: | CE Rohs FCC UL SAA GS CB |
| High Light: | switching power adapter,ac dc portable power adapter |
||

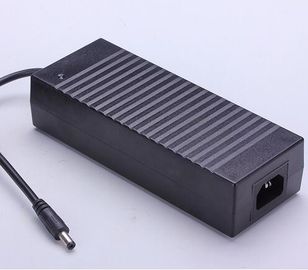

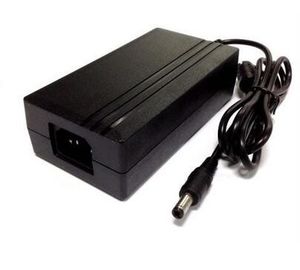

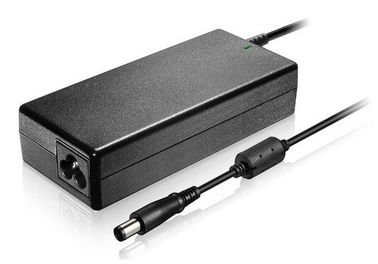

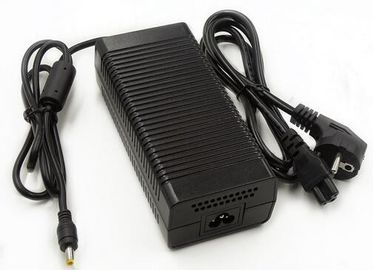

AC DC adapter 12V 5a 8a 10a 60W 120W UK Eu desktop power adapter for CCTVs 100~240v input with UL CE marked
| Product Name | POWER SUPPLY POWER ADAPTER |
| Efficiency | LEVEL VI |
| Input Voltage | 100-240Vac,50-60Hz,0.3A |
| Standby Power Loss | 0.3W Max |
| Output Ripple | <80mV at full road with 20MHz bandwidth |
| Protection | Over Current Protection |
| Over power protection | |
| Over charging and Over discharging protection | |
| Short Circuit Protection | |
| Over Voltage Protection | |
| Certificates |
60950 : UL CB CE FCC kC RCM KCC FCC CE EAC CB 61558 : CB CE GS RCM 61335:CE CB GS RCM SAA 60065 UL CE CB GS PSE RCM SAA |
| Burn-in Test | 100% burn-in test 4 hours |
| MTBF | Full load over 50000 hours |
| AC Plug(jack) | US plug, EU plug, UK plug, AU plug |
| Appearance | Vertical type |
| Color | Black |
| Cable Length | 1.2m 1.5m 1.8m 3m and so on |
| DC Connecter |
5.5mm x 2.1mm 5.5mm x 2.5mm micro head Or Customized |
| Size(mm) |
Kindly contact us for dimension UL/PSE/CCC 120.5*51.5*33.2mm SAA 120.5*51.5*33.2mm CE/KC/KCC 120.5*51.5*33.2mm BS 120.5*51.5*33.2mm Interchangeable 120.5*51.5*34.5mm Desktop 120.5*51.5*33,2mm |
| DC Cable | UL2464 22AWG 1.2M 1.5M 1.8M |
| Weight | 75g |
| Warranty | 3 years limited warranty |
| Packaging include | PE plastic bag + carton |
| Lead time | 25-30 days after order confirmed |
| Payment Term | L/C, T/T, Pay pal, Western Union, Cash |
| Quantity/Carton | 50pcs/carton or 100pcs/carton |
| Usage |
* LED strip ,LED light ,LED table lamp. * Router,amplifier,CCTV camera, * Home appliances ,setup box ,speaker, * Audio & Video equipments, * Wireless communication electronics . * Medical equipments * Electrical toy |
| DC Output Voltage | 12V± 5% |
| DC Output Current | 5000mA |
| DC Output Power | 60w |
| Working Efficency | 83% |
| Adapter Size | 103*45*42mm (L/W/H) |
| Efficiency | level 5 |
| Warranty | 2 years |
| Certificates approved | TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick |
| Input Rated Voltage | 86Vac~264Vac |
| Input Frequency Range | 47Hz~63Hz |
| Safety protection | output voltage protection (120%-150% rated output current) |
| output current protection (150%-180% rated output current) | |
| short current protection | |
| Ripple and Noise | less than 60Mv at full road with 20MHz bandwidth |
| DC connector | 5.5*2.1*11mm (optional) |
| DC cable | 1.5m 2464UL 20AWG cable (optional) |
| Operating Temperature | 0°C - +55°C |
| Storage Temperature | -20°C - +85°C |
| Safety Standard | EN60950 EN60601 ESD (EN61000 3-3) |
| CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2 | |
| AN/NZS CISPR 22:2006 | |
| Turn On Delay Time | less than 3S (AC:110V and full load) |
| Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
| Input Current | less than 0.5A |
| Input Inrush Current | less than 50A |
| Leakage Current | less than 5mA |
| Standby power | less than 0.3w |
| Net Weight | 300g/pcs |
| Gross Weight | 14.5kg/carton |
| Carton Box Size | 39*31*29cm |
