Product Details:
|
| LED Chip: | EVERLIGHT | Power: | 0.72W |
|---|---|---|---|
| Emitting Color: | Cool White | Color Temperature: | 6500K |
| Certification: | CE | Viewing Angle(°): | 160 |
| Type: | LED Modules | Color Rendering Index(ra): | 75 |
| Luminous Flux(lm): | 40-50lm | Storage Temperature(℃): | -40 - 60 |
| Operating Temperature(℃): | -40 - 60 | Warranty: | 3years |
| Luminous Intensity: | High Intensity | Led Qty: | 2 Leds/pcs |
| Voltage: | DC12V | Application: | Advertising Channel Letter,Advertising Signs,Advertising Signs;lighting Box;lighting Word,Led Sign |
| Product Name: | Injection Led Module |

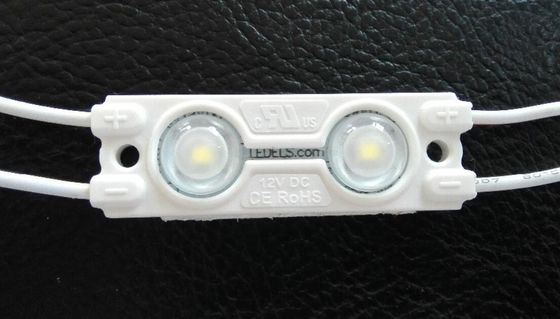

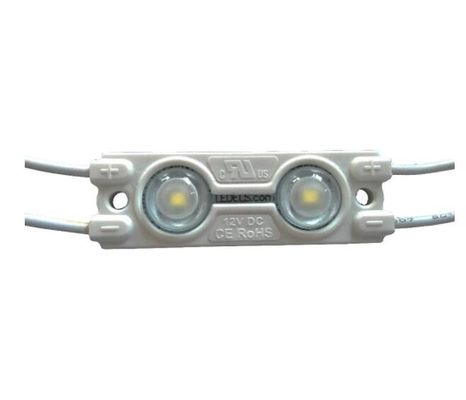

0.72w led module 12v 44lm Everlight 2835 2 led module for channel letter sign advertising box
Electrical characteristics:
| Model No. | F12T4815W3AEL | |
| LE Type | EVERLIGHT | |
| Beam angle | 160 degree | |
| Emitting color | White | |
| luminous flux | 44 lm | |
| Color temperature | 6500k | |
| Operating Temperature | 12vDC+-0.5 | |
| Operating Current | 60MA | |
| Power | 0.72Watt |
Physical Parameters:
| LED number | 3pcs | |
| pcs per link | 20pcs | |
| IP Grade | IP65 | |
| Shell material | PVC injection | |
| Driven by | constant voltage | |
| Positioning | Screw&Autoadhesive Tape | |
| Operating temperature | -30°c ---+60 °c | |
| Storage Temperature | -40°c ---+60 °c |
Product characteristics:
1.Powered by everlight led
2.Aluminium base for good heat sinking
3.Brightness:41LM
4.Driven by constant voltage
5.If powered maximun 12 hours a day,5 years warranty

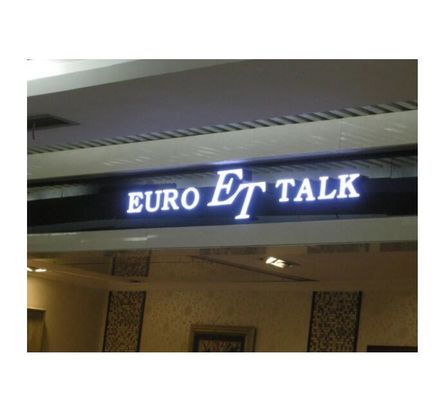

6.Application:Backlighting for display case,channels letter depth is 60-100mm
