Product Details:
|
| Power: | 0.72W | Emitting Color: | Cool White |
|---|---|---|---|
| Color Temperature: | 6500K | Certification: | CE |
| Viewing Angle(°): | 120 | Type: | LED Modules |
| Color Rendering Index(ra): | 90 | Power Dissipation: | 0.72W |
| Operating Temperature(℃): | -40 - 60 | Warranty: | 3years |
| Led Qty: | 3 Chips,epistar | Voltage: | DC 12V |
| Product Name: | Injection Led Module,High Quality Cheap Price Edge Lit Led Sign Module,smd Driver Waterproof High Power Module 5050 Led Sign Modules |

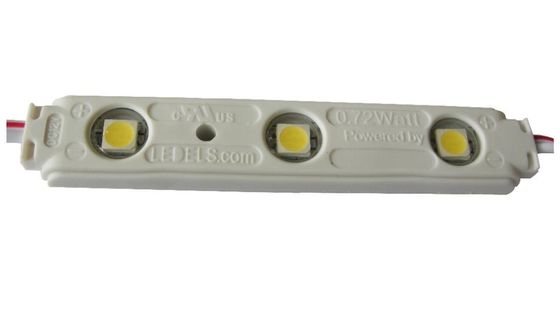

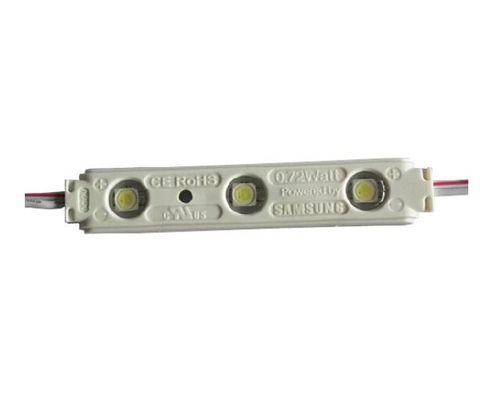

5050smd led 0.72w 5050 led module for channel letter and light box IP65,6500K
Electrical characteristics:
| Model No. | F12T7815W3A | |
| LE Type | Epistar | |
| Beam angle | 120 degree | |
| Emitting color | White | |
| luminous flux | 63 lm | |
| Color temperature | 6500k | |
| Operating Temperature | 12vDC+-0.5 | |
| Operating Current | 60MA | |
| Power | 0.72Watt |
Physical Parameters:
| LED number | 3pcs | |
| pcs per link | 20pcs | |
| IP Grade | IP65 | |
| Shell material | PVC injection | |
| Driven by | constant voltage | |
| Positioning | Screw&Autoadhesive Tape | |
| Operating temperature | -30°c ---+60 °c | |
| Storage Temperature | -40°c ---+60 °c |
Product characteristics:
1.Powered by epistar 0.3W led
2.Aluminium base for good heat sinking
3.Brightness:63LM
4.Driven by constant voltage
5.If powered maximun 12 hours a day,3 years warranty

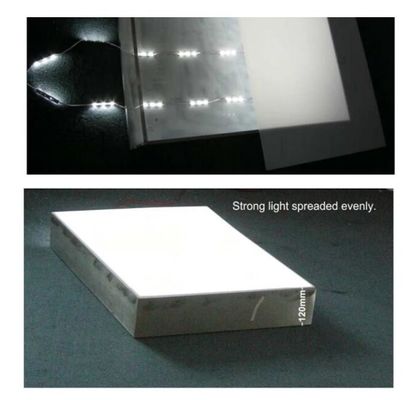

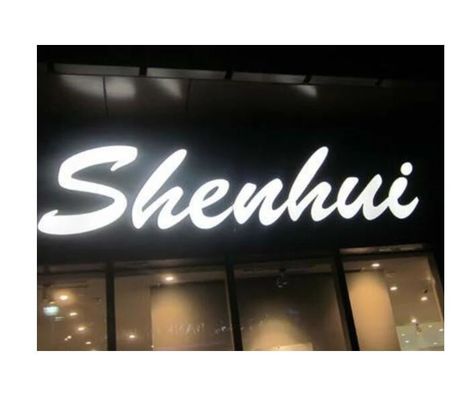

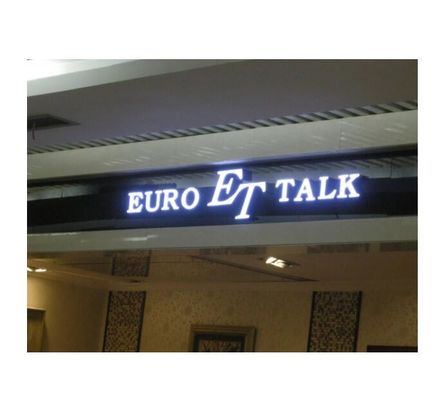

6.Application:Backlighting for display case,channels letter depth is 60-100mm
Quality control
1) All the led sign lighting modules delivered from Anenerge LIGHTING are 100% aging-tested before release and CE-certified, RoHS compliant, and UL-listed.
2) The ratio of defectiveness of Anenerge leds is to be less than 0.1%. If powered 10 to 12 hours a day, the warranty of
LEDELS leds is 5 years since delivery (or its lifespan is supposed to be more than 35,000 hours
Certificate:
