Product Details:
|
| Material: | ABS Plastic | Power: | 12W 24W 30W |
|---|---|---|---|
| Output: | 0.5a 1.5a 2a 2.5a | Packaging: | White Box |
| Certificates: | CE Rohs FCC UL SAA GS TUV | Warranty: | 2 Years |
| Highlight: | 12v universal power supply,ac dc 12 volt power supply |
||

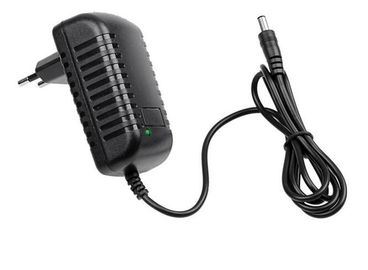

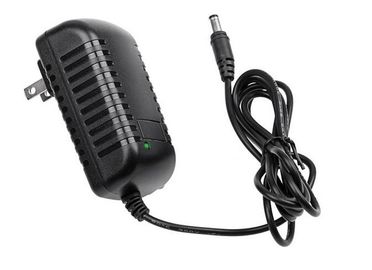

12v power adapter 0.5a 1.5a 2a 2.5a 12w 24w 30w dc power supply with CE UL
| Input Characteristics | Voltage Range | 100-240Vac |
| Minimum Voltage | 90Vac | |
| Maximum Voltage | 264Vac | |
| Frequency | 50/60Hz(47-63Hz) | |
| Efficiency | >85% @100%Load (Test at input 115Vac/60Hz , 230Vac/50Hz.) | |
| Stand-by power consumption | 0.2W Max @100V | |
| 0.5W Max @240V | ||
| Output Characteristics | Output | 5v 1200mA / 6v 1000mA / 12v 500mA / 15v 400mA |
| Protection | Over Voltage/Over Current/Short Circuit | |
| Safety details | High-voltage test | 3KV/6S |
| Mechanical Specifications | Case material | PC or PC+ABS |
| Weight | 55g | |
| Dimensions(L*W*H) | 58x39x28mm (not include input pins) | |

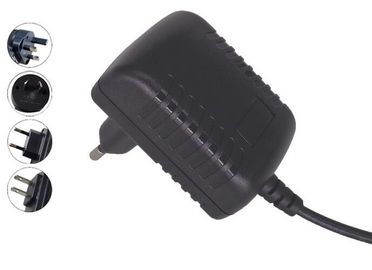

| Input Pin | US/UK/EU/AU/KC (Customize) | |
| Output Connector | 5.5*2.1*10mm type (Customize) | |
| Polarity | Center positive (Customize) | |
| Cord | 1.5m 22AWG | |
| Certificate | ETL GS CB RoHS CE FCC SAA | |
| warranty | 3 years | |
| Package | PE bag+white Box | |
| Input characteristic | |
| input voltage (Minimum) | 100-240VAC |
| Input Frequency | 50/60Hz |
| Input Plug | EU,UK,AU,US,CN |
| Output characteristic | |
| Output Voltage | 5/12/24/30V |
| Output voltage tolerance | ±5% |
| Load Current | 200/250/500/1200mA |
| Ripple Noise Max | 120mVP-P |
| Output Power | 6W |
| Plug | EU,UK,AU,US,CN |
| Protections | |
| 1 | internal over thermal shutdown protection |
| 2 | short circuit protection |
| 3 | Over voltage protection |
| 4 | input power over current protection |
| Environmental requirement | |
| Operating Temperature | 0 ℃ to 40 ℃ |
| DC Cable | 1 meter.1.2meter,1.5 meter,1.8meter |
Applications:
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.
![]()
![]()
