Product Details:
|
Name: | 250W Switching Power Supply | Material: | Aluminum |
---|---|---|---|
Input: | AC 110V-220V, 50/60HZ | Output: | 5V-48V |
Certificate: | CE,Rohs,FCC | Used: | LED Lights |
Packaging: | White Box + Carton | Warranty: | 1 Year |
Output Protection: | OLP/OVP/SCP | ||
High Light: | industrial switching power supply,switching power supply adapter |

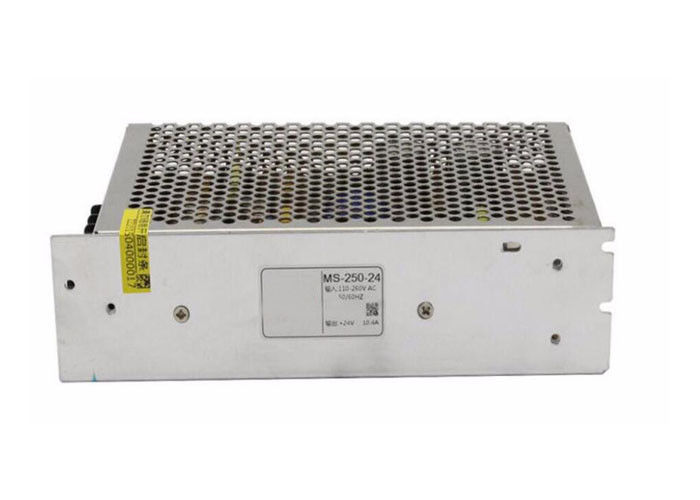

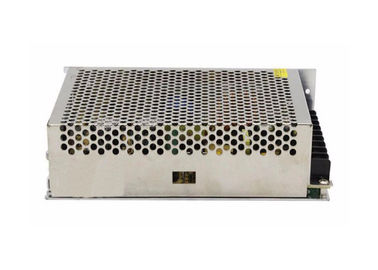

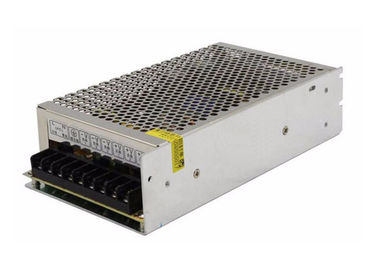

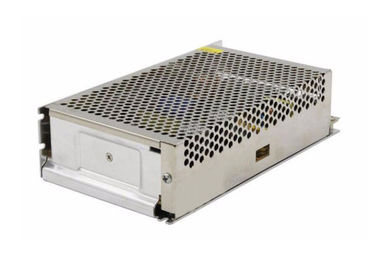

5V-48V AC DC Switching Power Supply With 250 Watt OEM ODM Service
Specification
Model | AE-SPS250-5 | AE-SPS250-12 | AE-SPS250-15 | AE-SPS250-24 | AE-SPS250-27 | AE-SPS250-48 | |
Output | DC Voltage | 5V | 12V | 15V | 24V | 27V | 48V |
Rated Current | 40A | 18A | 15A | 10A | 9A | 5.2A | |
Current Range | 0~40A | 0~18A | 0~15A | 0~10A | 0 ~ 9A | 0 ~ 5.2A | |
Rated Power | 200W | 216W | 225W | 240W | 243W | 249.6W | |
Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
Voltage Adj. Range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 24.3~29.7V | 43.2~52.8V | |
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Setup,Rise time | 800ms, 50ms at full load | ||||||
Hold time | 19ms at full load | ||||||
Input | Voltage Range | 90 ~ 132VAC / 176 ~ 264VAC Selected by switch 248~370VDC | |||||
Frequency Range | 47~63HZ | ||||||
Efficiency(Typ.) | 74% | 79% | 80% | 81.50% | 82% | 82% | |
AC Current(Typ.) | 4.8A/115VAC 2.8A/230VAC | ||||||
Inrush Current (Typ.) | COLD START 45A/230VAC | ||||||
Leakage Current | <2mA / 240VAC | ||||||
Protection | Over Load | 105 ~ 150% rated output power | |||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
Environment | Working Temperature | -10 ~ +60°c (Refer to "Derating Curve" ) | |||||
Working Humidity | 20~90% RH Non-condensing | ||||||
Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
Safety & EMC | Safety Standards | UL60950-1 approved | |||||
Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||||
Others | MTBF | 271.9K hrs min. MIL-HDBK-217F (25°c ) | |||||
Dimension | 215*115*50mm (L*W*H) | ||||||
Packing | 0.95Kg; 12pcs/12Kg/0.92CUFT | ||||||
Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | ||||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
Features:
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 1 year warranty
Advantages:
1. Certificate: CE,Rohs,FCC
2. Quick delievery: 15 days
3. 3 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome
