Product Details:
|
Name: | 300W Switching Power Supply | Material: | Aluminum |
---|---|---|---|
Input: | AC 110V-220V, 50/60HZ | Certificate: | CE,Rohs,FCC |
Used: | Car Stereo Transformers | Packaging: | White Box + Carton |
High Light: | ac and dc power supply,switching power supply adapter |

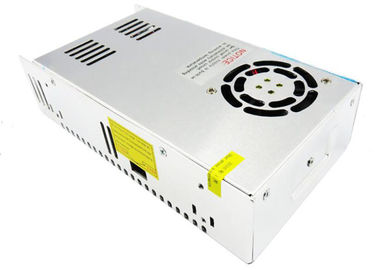

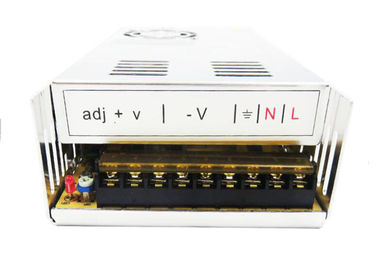

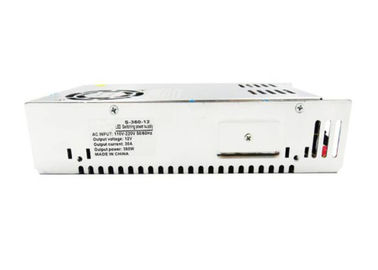

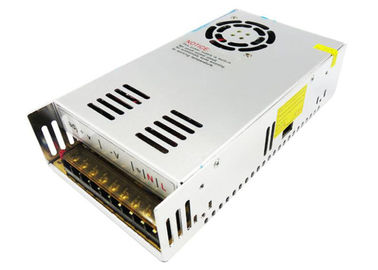

300W Power AC DC Power Supply 12V for Car Stereo Transformers CE Rohs FCC
Specification:
Model | AE-SPS300-5 | AE-SPS300-7.5 | AE-SPS | AE-SPS300-13.5 | AE-SPS300-15 | AE-SPS | AE-SPS300-27 | |
300-12 | 300-24 | |||||||
Output | DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V |
Rated Current | 50A | 40A | 25A | 22A | 20A | 12.5A | 11A | |
Current Range | 0 ~ 30A | 0 ~ 20A | 0-12.5A | 0 ~ 11.2A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 5.6A | |
Rated Power | 250W | 300W | 300W | 297W | 300W | 300W | 297W | |
Ripple & Noise (max.) | 150mVp | 150mVp | 150mVp | 150mVp | 150mVp | 150mVp | 200mVp | |
Voltage Adj. Range | 4.5 ~ 5.5V | 6~9V | 10~13.2V | 12 ~ 15V | 13.5~18V | 20~26.4V | 26 ~ 32V | |
Voltage Tolerance | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Load Regulation | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Setup,Rise, Hold time | 200ms, 50ms, 20ms at full load | |||||||
Input | Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC | ||||||
Frequency Range | 47~63HZ | |||||||
Efficiency(Typ.) | 73% | 76% | 74% | 79% | 78% | 81% | 82% | |
AC Current | 6.5A/115VAC 4A/230VAC | |||||||
Inrush Current (max.) | 50A/115VAC 50A/230VAC | |||||||
Leakage Current | <3.5mA / 240VAC | |||||||
Protection | Over Load | 105 ~ 150% rated output power | ||||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
Over Voltage | 5.75 ~ 6.75V | 9.4 ~ 10.9V | 13.8V~16.2V | 15.5 ~ 18.2V | 18V~21V | 27.6V~32.4V | 33.7 ~ 39.2V | |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
Function | Fan on/ off Control | RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V) | ||||||
RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V) | ||||||||
RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V) | ||||||||
Environment | Working Temperature | -10 ~ +50°c (Refer to output load derating curve) | ||||||
Working Humidity | 20~90% RH Non-condensing | |||||||
Storage temp.& humidity | -20~+85°C, 10~95%RH | |||||||
Temp. coefficient | ±0.03%/°C (0~50°C) | |||||||
Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes | |||||||
Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
EMC | Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
Others | MTBF | 234.3K hrs min. MIL-HDBK-217F ( 25°c ) | ||||||
Dimension | 215*115*50mm (L*W*H) | |||||||
Packing | 1.07Kg; 12pcs/13.5Kg/0.92CUFT | |||||||
Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | |||||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
Features:
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 1 year warranty
Advantages:
1. Certificate: CE,Rohs,FCC
2. Quick delievery: 15 days
3. 3 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome
