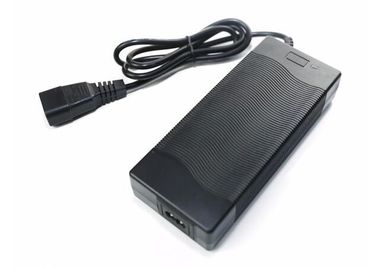

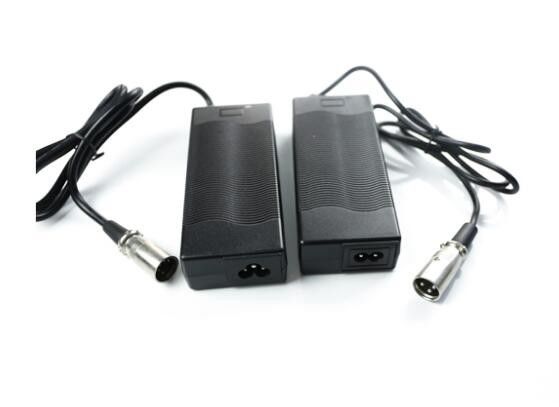

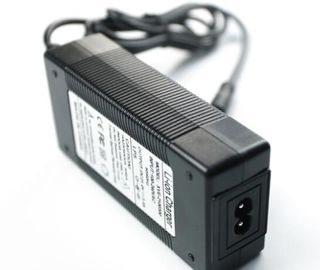

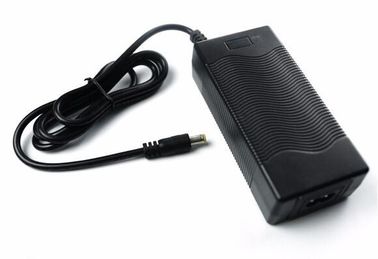

Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter

Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter
Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter

Large Image :  Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter

Product Details:
Place of Origin: Shenzhen
Brand Name: OEM/Anenerge
Certification: CE Rohs FCC UL TUV GS CB SAA KC
Model Number: AE-24v10a
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-3usd/pcs
Packaging Details: Neutral white box packaging
Delivery Time: 3-5days
Payment Terms: Western Union,Paypal,T/T
Supply Ability: 1000000pcs/month

Black Ac Dc Portable Power Adapter / 240 Watt Switching Power Supply Adapter

Description
Output: 24V 10A Power: 240watt
Available: LCD Machine CCTVs Price: Negotiable
Ripple Noise: 120mvpp Name: Ac Dc Switching Adapter
High Light:

ac to dc power supply adapter

,

universal ac dc power adapter

24V 10A desktop power adapter for LCD machine,CCTVs power supply with CE UL



Description:



Product Electric Parameters
Input specification Input voltage AC100V---240V
  Input frequency 50-60Hz
  Input surge 20A@120VAC 40A@230VAC
Output specification Output voltage can be adjusted ±10%
  Start-up time <1S(input230V Io=100%)
  keep time >20mS (input230V,Io=100%)
  Voltage regulation (Full load) <0.5%
Protection function Overload protection 105% - 150% rated power, automatic recovery
  Over-voltage protection 105% - 150% of the rated voltage
Insulation intensity Input---output 1500VAC/1min
  Input---ground 1500VAC/1min
  Input---ground 500VAC/1min
Safety standards According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental working temperature - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
  Storage temperature - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
  height above sea level <2000M
Cooling method Cooling method Natural cooling air convection
Product Type Table
Product model output specification ripple, noise efficiency
S24010000 24V 10A 100mV about 80%



Details:


1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A


Protections:

1) over voltage protection: 120%min
2) over current protection: 120%min
3) over protection
4) Short-circuit protection: automatic recovery ­
5) Load regulation: ±5%

Environmental requirement:

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­
5Insulation resistance: DC 500V 100MΩ (minimum) ­

Advantages:

1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave

Applications:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display. security systems, instrumentation, medical equipment, audio-visual products, digital products, LED lighting, electric cars and other products

Competitive Advantage:

1 Personal digital charger : smartphone/tablet usb charger, car charger,interchangeable charger.
2 Security power adapter: CCTV power adaptor 12v , access control systems power adapter.
3 Lighting power supply: LED light power supply, LED strips power supply.
5 Telecommunications power converter: router/hub CE KC SAA PSE adapter 12v 1a ,set top box power converter.
4 A&V power supply: Speaker power supply, DVD plyer power supply
