Product Details:
|
| Wall Mount: | Yes | Power: | 12V 2A 24Watt |
|---|---|---|---|
| Material: | Fireproof ABS PC Plastic | Available: | Webcam LED Strips Pinter |
| Ripple Noise: | 100mvp-p | Warranty: | 2 Years |
| High Light: | 12v universal power supply,12 volt power supply adapter |
||

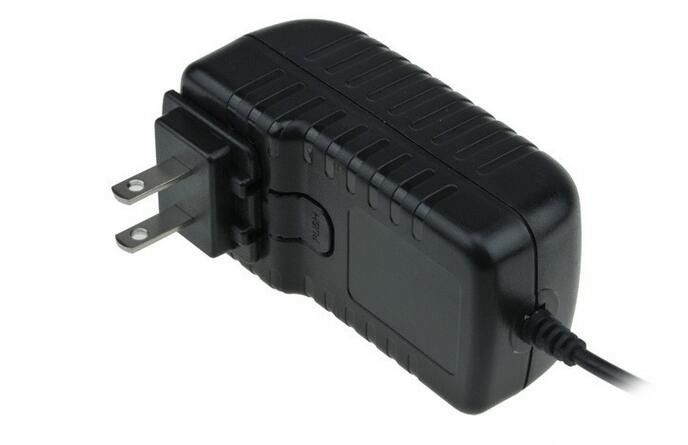

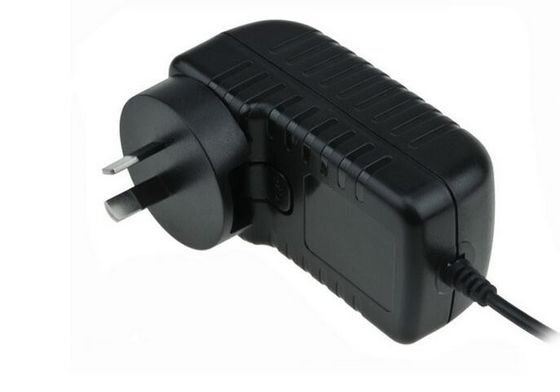

Black 12v Power Adapter For Webcam Led Strips Pinter , 100mvp Ripple Noise
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM
Model Number: AE-12002000
Output Type: DC
Connection: Plug In
Input rating: 100-240V AC 50/60HZ 1.0A
Output voltage: 12V
Max output current: 2A
Max output power: 24W
Output mode: DC cord
Warranty: 2 Years
| Product Information | |
| Model name | AE-12002000 |
| Input rating | 100-240V AC 50/60HZ 1.0A |
| Output voltage range | 12V DC |
| Max output current | 2A |
| Max output power | 24W |

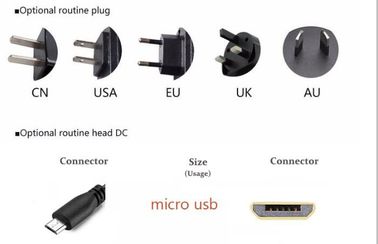

| Input AC pin | US plug |
| Outline dimension | 82*46*40mm(Note:The outline height does not include the height of AC pin) |
| Output mode | DC cord |
| Features | |
| Life of the unit | 50000hours at 25℃ |
| Wide voltage input | |
| Over current protection | |
| Over voltage protection | |
| Short circuit protection | |
| Constant current and voltage working models | |
| 100% full load burn-in | |
| Product Specification | |
| Input | |
| Input voltage range | 90-264V AC |
| Input frequency range | 47-63HZ |
| Inrush current | 30A Max |
| Standby power | 0.3W Max |
| Output | |
| Output voltage range | +5% or -5% |
| Turn on delay time | 2s Max |
| Efficiency level | V |
| Over current production | Fault remove auto recovery |
| Over voltage protection | Fault remove auto recovery |
| Short circuit protection | Fault remove auto recovery |
| Environment | |
| Operating temperature | 0 to +40℃ |
| Operating humidity | 5% to 80% |
| Storage temperature | -20 to +70℃ |
| Storage humidity | 5% to 95% |
