Product Details:
|
Output: | 12volt 8amp | Power: | 96W |
---|---|---|---|
Efficiency: | 85% | Packaging: | Neutral White Box |
Plugs: | EU US UK SAA | Certificates: | CB UL CE GS TUV |
High Light: | 12v universal power supply,12 volt power supply adapter |

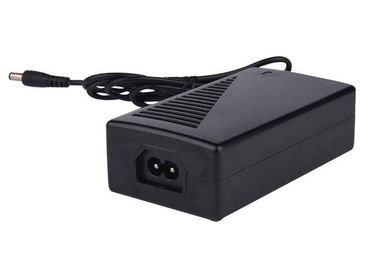

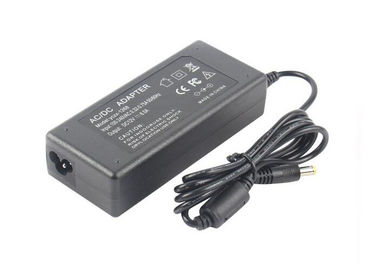

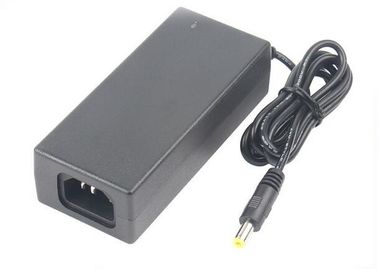

6A 8a 72w 96w Desktop Power Supply , Ac To Dc Power Adapter Vi Efficiency
Specification:
1. Input : AC 100-240V 50/60HZ
2. Output: 12V 8A 96W
3. Plug option: AU EU UK US AUS CN
4. Inlet type: C6 C8 C14
5. AC/DC cable length: 1.2M/1.5M
6. Size:138*60*34mm
7. DC Jack size: 5.5*2.5mm or 5.5*2.1mm
8. MOQ: 500pcs
9. Package: white box+carton
10. Delivery:1-3 workdays for samples
11. Warranty: 3 years
12. Certification: UL/CUL CE CB FCC GS TUV PSE ROHS SAA KC
Input Characteristics | Rated Voltage | 100~240Vac |
Variation Range | 90-264Vac | |
Rated Frequency: | 50/60Hz | |
Variation Frequency | 47-63Hz | |
AC Current | 1.8Amps max | |
AC Leakage Current | 0.25mA | |
Output Characteristics
|
12V 8A 96W | |
Ripple and Noise: | 120mV p-p | |
Turn- on Delay Time | 2Seconds Max.at 115Vac input and output Max.load | |
Rise time | 40 mS Max.at 115Vac input and output Max load | |
Hold-up Time | 5 mS Min.at 115Vac input and output Max.Load | |
Efficiency | 80% Min, At 115/230Vac input voltag | |
Output Overshoot/ Undershoot | 10% max | |
Protection | over voltage protection: | 120%min |
over current protection: | 120%min | |
Short-circuit protection: | automatic recovery | |
Operation Temperature | 0°C to 40°C | |
Environment Requirements | Storage Temperature | -20°C to +80°C |
Relative Humidity | 5%(0°C )~90%(40 °C)RH | |
Operating: | IEC 721-3-3 3M3 | |
Vibration | Transportation: | IEC 721-3-2 2M2 |
Axes,10 cycles per axis. | ||
Dropping Packed
|
1M for wall mount type and 760mm for desktop type as above described | |
Reliability Requirements
|
Burn-in | 2 hours under normal input and 80%rated load at 30°C ±10°C |
MTBF Qualification | at least 50,000 hours at 25°C | |
Mechanical Requirement | Enclosure | size: L138xW60xH34mm |
Input Connector | C14 C6 C8 |
Operating Temperature: 0 ~ +40°C
Storage Temperature: -40 ~+80 °C
Operating Humidity: 10% ~ 90% RH Non-condensing
Humidity: 5% ~ 95% RH Non-condensing
Output noise and ripple:100mvpp
Output voltage adjustable rate:5%
Specification:
output voltage :12v
output current :8A
output power :96W
output short circuit to protect:less than 2w
output ripple and noisy: 100mvp-p
