Product Details:
|
| Material: | ABS Plastic PC | Color: | Black White |
|---|---|---|---|
| Outpuit: | 48V 3A | Item: | Desktop Power Supply |
| Certificates: | CE Rohs FCC UL ETL SAA GS | Price: | 1~5usd/pcs |
| High Light: | ac dc switching adapter,ac to dc power supply adapter |
||

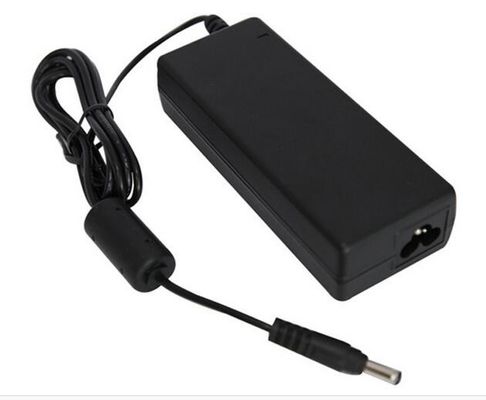

Desktop power adapter 48V 3A switching power supply DOE VI CE UL GS marked
Specification:
| Parameter | 48v3a |
| AC Input | |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output | |
| Output Voltage | 48V |
| Output Current | 3A |
| Output Power | 144w |
| DC Connector Size | 5.5*2.5/5.5*2.1/USB/2.5*0.7/3.5*1.35 |
| Line Regulation | 2% |
| Load Regulation | 5% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 0.35mm2 Pure Copper |
| Output Cable Length | 1m normally or customized requirement(1.2M,1.5M,1.8M,2M) |
| Environment | |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection | |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates | |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, CCC,PSE | |
| Dimensions | |
| PCS/CTN | 50PCS |
| Outer Carton Size | 48.5*32*40CM |
| GW/CTN | 28kg |
| Package | |
| Inner Box | Normally white box or PE BAG or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty | |
| Warranty | 1 year |
| Manufacturing Process | |
|
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→ 11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping |
|
1:Our service
1) Any inquiries will be replied within 24 hours
2) Professional manufacturer.
2. OEM/ODEM available
1). Silk print logo on the power adapter;
2). Customized power adapter housing;
3). Any your idea on the power adapter we can help you to design and put it into production
3. High quality,reasonable & competitive price ,fast lead time.
4. After-Sale Service
All power adapters have 2 years warranty ,if any default units ,take some pictures,we will replace the related quantity.
5. Faster delivery
Sample order in stock ,will be sent out in 2-3 days after confirmation, and 7-12 working days for bulk production.
Contact Person: Mr. Owen
Tel: 0086-13028897067
Fax: 86-755-93691369
