Product Details:
|
| Input: | 100~240v Ac Input | Output: | 12V 3a 5a 36a 60W |
|---|---|---|---|
| Material: | ABS+PC Material | Ripple And Noise: | 120mvp-p |
| Color: | Black Or White | Warranty: | 2 Years |
| High Light: | 12v universal power supply,12 volt power supply adapter |
||

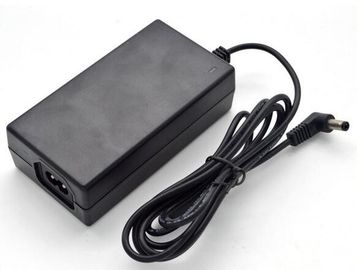

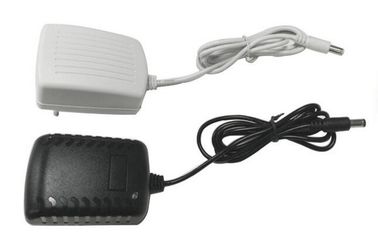

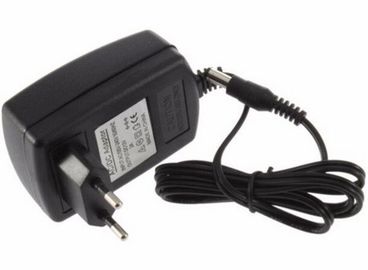

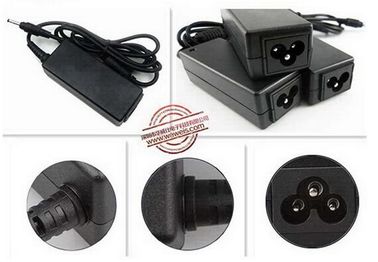

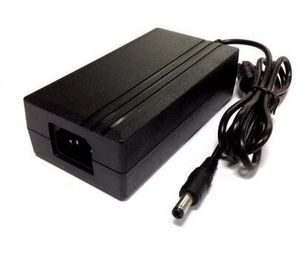

12V 3a 5a 36a 60W power adapter PSU LED power supply for CCTVs 100~240v input with UL CE marked
| Usage |
* LED strip ,LED light ,LED table lamp. * Router,amplifier,CCTV camera, * Home appliances ,setup box ,speaker, * Audio & Video equipments, * Wireless communication electronics . * Medical equipments * Electrical toy |
| DC Output Voltage | 12V± 5% |
| DC Output Current | 5000mA |
| DC Output Power | 60w |
| Working Efficency | 83% |
| Adapter Size | 103*45*42mm (L/W/H) |
| Efficiency | level 5 |
| Warranty | 2 years |
| Certificates approved | TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick |
| Input Rated Voltage | 86Vac~264Vac |
| Input Frequency Range | 47Hz~63Hz |
| Safety protection | output voltage protection (120%-150% rated output current) |
| output current protection (150%-180% rated output current) | |
| short current protection | |
| Ripple and Noise | less than 60Mv at full road with 20MHz bandwidth |
| DC connector | 5.5*2.1*11mm (optional) |
| DC cable | 1.5m 2464UL 20AWG cable (optional) |
| Operating Temperature | 0°C - +55°C |
| Storage Temperature | -20°C - +85°C |
| Safety Standard | EN60950 EN60601 ESD (EN61000 3-3) |
| CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2 | |
| AN/NZS CISPR 22:2006 | |
| Turn On Delay Time | less than 3S (AC:110V and full load) |
| Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
| Input Current | less than 0.5A |
| Input Inrush Current | less than 50A |
| Leakage Current | less than 5mA |
| Standby power | less than 0.3w |
| Net Weight | 300g/pcs |
| Gross Weight | 14.5kg/carton |
| Carton Box Size | 39*31*29cm |
