Product Details:
|
| Power: | 50w | Waterproof: | IP67 |
|---|---|---|---|
| Available: | Led Strips And Modules | Voltage: | 12v 24v |
| Efficiency: | 86% | Material: | Aluminum Alloy |
| High Light: | led constant voltage power supply,led driver power supply |
||

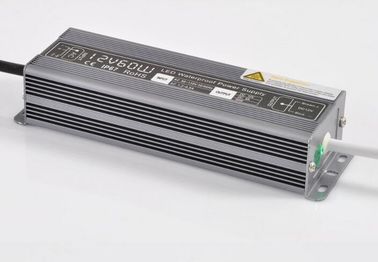

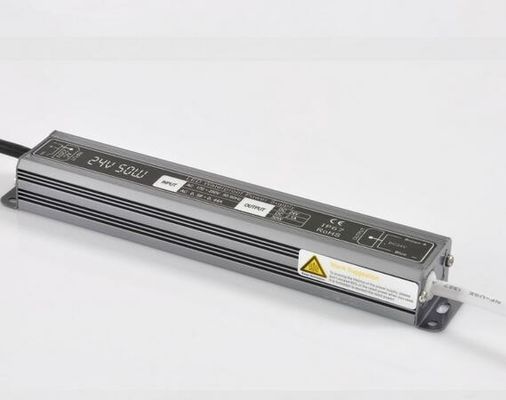

50W IP67 constant voltage led driver for led strips and modules
Features:
Small size,High efficiency,High reliability,Long lifetime;
IP67 rating;
Working temperature -25~+50°C Protection:Overload,Short-circuit pratection,Over-temperature;
Typical efficiency:85% Low standby power,min to 0.5W;
Start delay design,which can reduce the starting current when multiple simulatance start;
CE,EMC,IP67 certifide,ROHS compliant;
Low output ripple moises.
| Model | AE-12050F | AE-24050F |
| DC output voltage | 12V | 24V |
| Rated output current | 4.17A | 2.08A |
| Output current range | 0~4.17A | 0~2.08A |
| DC output power | 50W | 50W |
| Efficiency | 86% | 86% |
| Input voltage | AC 90V~130V/170V~250V | |
| Input frequency | 50-60Hz | |
| Working temperature and humidity | -30°C~50°C | |
| Store temperature and humidity | -40°C~80°C | |
| Weight | 220g | |
| Dimension | 136*45*54mm | |
| Waterproof level | IP67 | |
| Certificates | CE&RHOS | |
