Product Details:
|
| Material: | ABS Plastic | Output: | 4.2V 12.6V 16.8V 1Amp |
|---|---|---|---|
| Avaiable: | Lead Acid Battery Charger | Color: | Black |
| Packaging: | White Box | Warranty: | 24months |
| High Light: | ac dc switching adapter,ac dc portable power adapter |
||

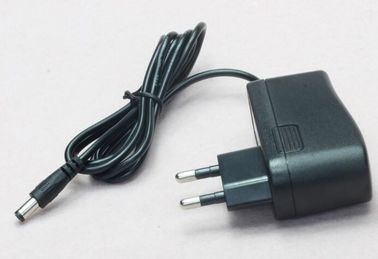

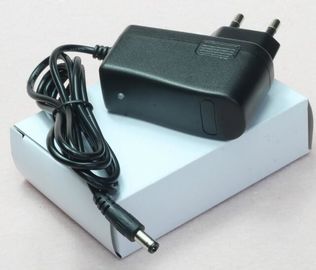

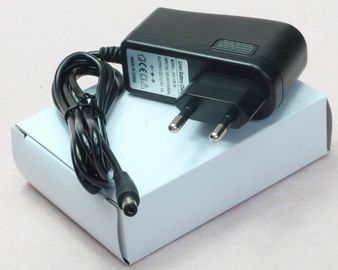

4.2V 12.6V 16.8V li-ion 18650 battery charger,lead acid battery charger,with green turn light
Use: Standard Battery
Type: Electric
Place of Origin: Guangdong, China (Mainland)
Socket Standard: EU/AU/UK/US
Product name: 18650 battery charger
Input Voltage: AC 100~240V 50/60HZ
Output voltage: 4.2V 12.6V 16.8V DC
Output current: 1000mA
Output Power: 12.6W 16.8W
Protection: Short cricuit/ouerload
Certificates: CE ROSH FCC UL
Warranty: 2 Years
Color: Black
OEM Service: yes
| Model | AE-42V1A | |
|
Output
|
DC output voltage | 8.4V |
| Output voltage tolerance | ±5% | |
| Rated output current | 1.0A | |
| Output current range | 0~1.0A | |
| Output power | 8.4W | |
| Ripple and noise | 100mVp-p | |
| Line regulation | ±0.5% | |
| LED indicator | Green LED ON <100~150mA | |
| Charging mode | 2 stage, CC-CV mode | |
|
Input
|
Input voltage range | 100~240VAC 140~350VDC |
| AC input current | 0.2A/230VAC | |
| Efficiency | 82% | |
| AC inrush current | 3A/230VAC | |
| Leakage current | <3.5mA | |
| Frequency range | 50~60Hz | |
|
Protection characteristic
|
Over load protection |
105%~150%rated output power |
| Protection mode : FOLDBACK limiting output reset: auto recovery | ||
|
Environment
|
Working temperature | 0~+50 degree |
| Working humidity | 20%~90% RH non-considering | |
| Storage Temp,humidity | -10~+60 degree | |
| Temp.coefficient | ±0.03% /(0~50 degree) | |
| Vibration | 10 ~ 500Hz, 2G10min / 1 cycle, duration 60 minutes, each axis | |
|
Safety
|
Withstand voltage | I/P-O/P:3000 VAC |
| Safety standards | EN60950 | |
| Insulation resistance | I/P-O/P:100M Ohms/500VDC/25 degree/70 degree RH | |
| Harmonic current | Compliance to EN55024, EN61000-3-3 | |
| EMS immunity | Compliance to EN61000-3-3 | |
|
Others
|
Weight/Packing | 0.1kg/100PCS/12kg |
| Dimension | 74.5*29*78.3MM | |
Remark:
1. All parameters are specified at 230VAC input, rated load, 27 degree 70%RH ambient.
2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
3. Tolerance: includes set up tolerance, line regulation, load regulation.
4. DC voltage : the output voltage set at point measure by plug terminal &50% load.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 20% to 100% rated load.
7.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.
