Product Details:
|
| Material: | ABS Plastic Fireproof | Output: | 12v 3a 5a 8a 10a |
|---|---|---|---|
| Price: | Negotiable | Wall Mount: | Yes |
| Color: | Black | Plugs: | Eu Au Us UK |
| High Light: | ac dc switching adapter,ac dc portable power adapter |
||

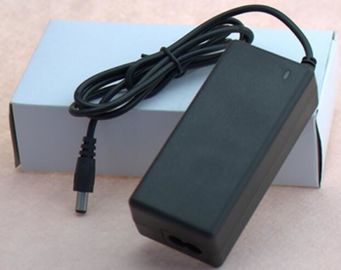

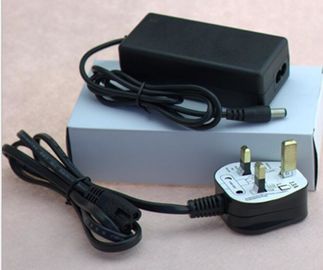

Black 12V 2.5A 3A 5A Wall Mount AC DC Power Adapter With Eu Au Us Uk Plugs For Led Lamp
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/Anenerge
Model Number: AE-1200500
Output Type: DC
Connection: Desktop
Output voltage: 5V 6V 7.5V 9V 12V 15V 24V
Output power: 1-120W
Output current: 0.1-15A
Certificate: CE ROHS UL FCC
Weight: 0.085kg
Size: 75*40*30mm
Warranty: 2years
Input: AC 100-240v 50-60hz
Wall plug type: EU US UK AU
Name: Switching Power
| Product parameter | power adapter |
| Manufacturer | HK Anenerge Co., Limited |
| Warranty | Two years of replacement |
| Input plug | All rule |
| Input voltage | AC100-240 50-60HZ |
| Output voltage | 5-24V |
| Output plug | 5.5*2.1mm .5.5*2.5mm. |
| Product size | 85*55*42mm |
| Product weight | 0.085kg |
| Burn-in test | Yes |
| Output current | 1-15A |
| Output power | 12-300W |
| Temperature | 0-50 degree |
| DCjack(plug) | 5.5*2.5mm 5.5*2.1mm 4.0*1.7mm 3.5*1.35mm 2.5*0.7mm |
| DC cable length | 1m/1.2m/1.8m/2m/2.5m/3m |
| Colour | White and black |
| Ripple and noise | less than 60Mv at full road with 20MHz |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -20°C - 85°C |
| Input current | Less than 0.5A |
| Input Inrush Current | Less than 50A |
| Standby power | Less than 0.1W |
| Carton Box Size | 51*23.7*30cm |
| Working efficency | 80% |
| Certificate | CE FCC ROHS UL |
Application:
E-POS,LCD screen,DVR,TVB,Vacuum cleaner,Projector,3D printer,3D pen etc
LED Lighting,Security monitoring,Semiconductor refrigeration and heating
Communication device, Medical device,Home appliance,Electric tools,Industrial equipment
Audio-visual products, digital products and Instrument series etc
