Product Details:
|
| Power: | 1.5Watt | Emitting Color: | White/Cool White |
|---|---|---|---|
| Color Temperature: | 2700-7000K,6000-6500K | Certification: | CE ROHS |
| Chip Material: | Epistar | Type: | LED Modules |
| Luminous Flux(lm): | 140lm | Operating Temperature(℃): | -40 - 60 |
| Warranty: | 3years | Led Qty: | 4pcs |
| Voltage: | 110~220Vac | Application: | Advertising Channel Letter,Advertising Signs,Led Sign |
| Product Name: | 2835 Led Module |

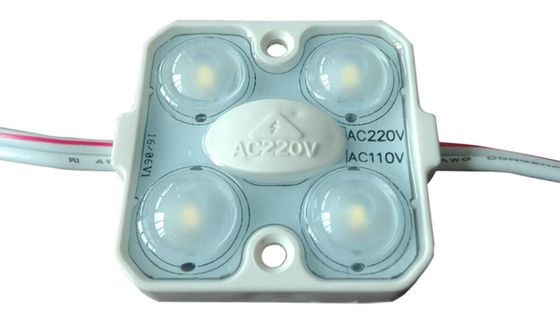

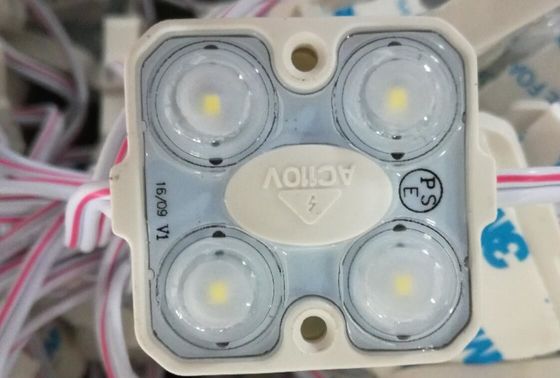

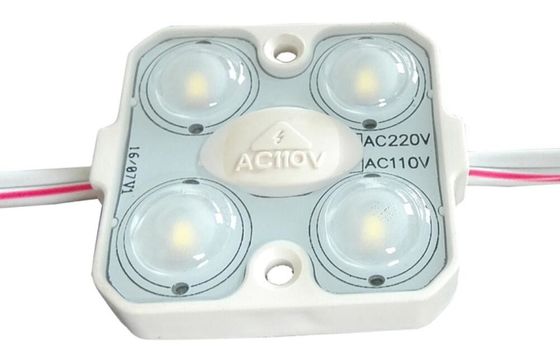

1.5w 140LM 110VAC 220VAC input High volatge led module For Channel letter Lightbox Sign box
Product details:
1. Epistar SMD2835 led inside
2. 2.0 Thick Aluminium PCB for good heat sinking
3. Power:1.5w ,Voltage 110/220V AC ,Brightness:120-140LM
4. 3 years' warranty
5. 160degrees Wide angle lens & optical lens , uniformity is very good!
6. Backlighting for single sided light box lighting, Cost effective for light box whose depth from 100-200mm depth
Electrical characteristics:
| Model No. | F110T4440W4A/F220T4440W4A |
| LED Type | EPISTAR SMD2835 Led |
| Viewing angle | 160 degree |
| Emitting color | warm white/nature White/pure white |
| luminous flux | 120-140lm |
| Color temperature | 3000k,4500k,6500 kelvin |
| Lead time | within one week |
| warranty | 3 years |
| Power consumption | 1.5Watt |
Physical Parameters:
| LED number | 4pcs |
| pcs per link | 40pcs |
| IP Grade | IP65 |
| Shell material | EPOXY cover |
| Driven by | 110VAC/220VAC |
| Positioning | Screw&Autoadhesive 3M Tape |
| Operating temperature | -30°c ---+60 °c |
|
Storage Temperature |
-40°c ---+60 °c |
Application:
a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
Product characteristics:
1.Powered by epistar high voltage smd 2835 led
2.Aluminium base for good heat sinking
3.Brightness:120-140LM
4.Driven by high voltage 110vac/220v ac
5.If powered maximun 12 hours a day,3 years warranty
6.Application:Backlighting for display case,channels letter depth is 80-300mm
Quality control
1) All the led sign lighting modules delivered from Anenerge LIGHTING are 100% aging-tested before release and CE-certified, RoHS compliant, and UL-listed.
2) The ratio of defectiveness of leds is to be less than 0.1%. If powered 10 to 12 hours a day, the warranty of
