Product Details:
|
| Material: | ABS Fireproof | LED Type: | Epistar LED Chips |
|---|---|---|---|
| Wide Beam Angle: | 175 Degree | Luminous Flux: | 180-200lm |
| Color Temperature: | 6000K-7000K | Input Voltage: | 12vdc |
| Power: | 1.2w | Emitting Color: | Cool White |
| Certification: | CE UL FCC | Type: | LED Modules |
| Color Rendering Index(ra): | 90 | Operating Temperature(℃): | -40 - 60 |
| Warranty: | 3years | Led Qty: | 4pcs |
| Voltage: | DC 12V | Product Name: | SMD2835 Mini LED Module,2835 Led Module |

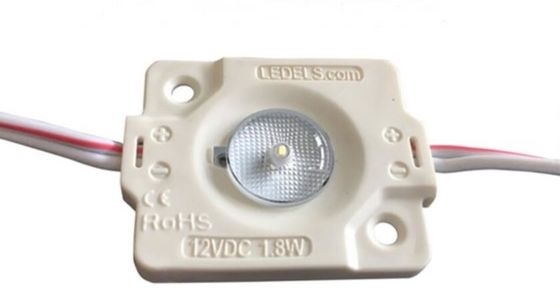

1.8w 12v 200lm high power led module for backlight lightbox sign with 3years warranty
Specifications
| Model No. | F12P600W1L45 |
| LED Type | Epistar LED Chips |
| Wide Beam angle | 175 degrees |
| Emitting color | White/ Warm White (Choose One color) |
| luminous flux | 180-200lm |
| Color temperature | 6000K-7000K |
| Operating Temperature | 12vdc+-0.5 |
| Operating Current | 150MA |
| Power | 1.8Watt |
| Positioning | Screw& blue Autoadhesive Tape |
| Shell material | ABS injection&Aluminum PCB |
| Other colors | warm white(2800-3500K) |
| warranty | 5 years |
Features:
·Easy Installation
LED Modules can be easily installed with blue double-sided sticking tape and connectors.
·Friendly environment
Pb free. With CE/RoHScertificate,Waterproof LED Modules are up to 60% more energy efficient than neon.
Application Case
a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for advertising Lightingbox.
d. Backlighting for local lighting and advertising signage.
Application Case 1,Nichia Lightbox Led Modules for ceiling lighting
Sign depth:150mm~250mm
Quantity:25pcsper square meter
Lightbox Project of 1.8W 12V Nichia LED Modules:10000mm*13000mm*200mm
Application Case 3:15000mm*1650mm*150mm
depth:150mmQuantity:20pcsper square meter
Order infomation
MOQ: 1000pcs
Trade term: EXW / FOB Shenzhen
Delivery time: 3-5 working days for sample order, 7-15 working days for mass order
Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, T/T 30% deposit after order confirmed, the balance after goods ready before shipping .or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model .Samples can be ready in 3~7 days once payment received.
4. Discounts : We offer discount for big quantity.
