Product Details:
|
| Material: | ABS Plastic | Output: | 12V 36Watt |
|---|---|---|---|
| Input: | 90V 240V | Size: | 120*42*28mm |
| Efficiency: | 87% | Application: | LED Strip,device,control Board |
| High Light: | ac dc power supply wall adapter,led strip light adapter |
||

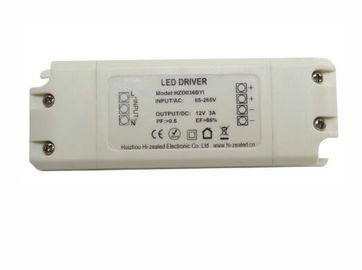

Constant voltage triac dimmable 12v 36w led driver, LPS with CE Rohs FCC marked
Quick Details:
Place of Origin: Guangdong, China (Mainland)
Model Number: AED036BYI
Output Power: 36w
Output Type: Single
Input Voltage: 90-264Vac
Output Voltage: 12V/24V
Output Frequency: >35K Hz
Output Current: 1.5A/3A
Efficiency: 85%
Working temperature: -35~+60 ℃
Storage temperature: -40~+80 ℃
Warranty: 3 Years
Certification: CE FCC ROHS TUV
Keywords: 36w constant voltage led driver
Protections: Short Circuit/Over current/Over termperature
Application: strip light,Canstant voltage control circuit
Size: 120*42*28mm
Advantages of LED power supply:
High efficiency, low power consumption
Energy saving, environmentally friendly
Stable quality, 100% test before delivery
Rigorous ripple and low noise
Over-heat, over-load, short-circuit & open-circuit protection
Quick assembly and easy installation
Offer 3 years warranty and maintain our repair rate below 0.1%
We will provide spare parts on bulk orders
| Product details | |
| Model No.: | AED036BYI |
| Power: | 36W |
| Protections : | Short Circuit/Over current/Over termperature |
| Warranty: | 3 Years |
| Voltage(input): | 90-264VAC |
| Voltage(output): | 12V/24V |
| Current(output): | 1.5A/3A |
| MOQ: | 100pieces |
| Frequency: | 50/60Hz |
| Efficiency: | 85% |
| Power Factor: | ≥0.5 |
| Size(L*W*H): | 120*42*28mm |
| Application: | strip light,Canstant voltage control circuit |
Isolated safe design.
No flicker version,good for eyes.
Pb-free solder,environment friendly.
CE ROHS FCC standard
3-5 yeras warranty
1. OEM ODM service available ,we have over 10 years experience in led driver field.
2. Give me your idea ,we can make it come true !
3. Quick response within 24 hours.
4. Experienced engineers for technology supporting & after sale service.
5. Trade Assurance service.
6. The parameters can be customized according to your requirements.
