Product Details:
|
Name: | 12V 1A Power Adapter | Material: | ABS |
---|---|---|---|
Input: | AC 110V-220V, 50/60HZ | Output: | DC 12V 1A |
Certificate: | CE,Rohs,FCC,UL,TUV,CB | Color: | Black/White |
Connection: | Wall Mount | Plug: | EU/US/UK/AU |
Used: | CCTVs, LED Strips | Packaging: | White Box + Carton |
Highlight: | 12v universal power supply,12 volt power supply adapter |

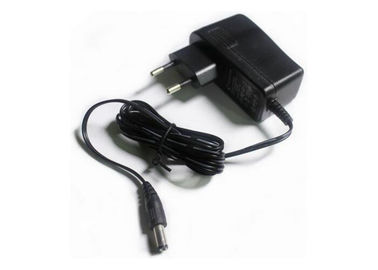

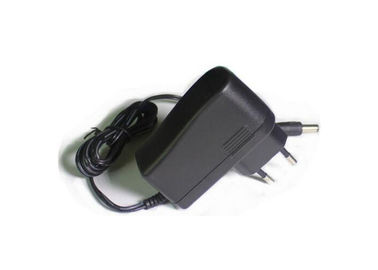

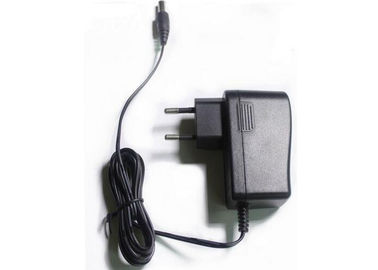

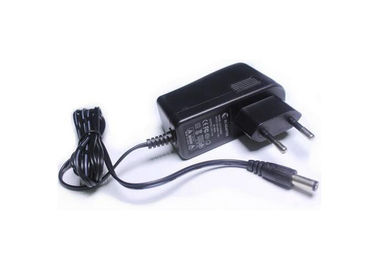

12V 1A 1.5A Wall Mount Power Adapter for CCTVs LED Strips CE Rohs FCC UL TUV CB
Specification:
Output | DC Voltage | 12V | ||||
Rated current | 1A | |||||
Current range | 0-1A | |||||
DC power | 12W | |||||
Ripple and noise | 100mVp-p | |||||
Intet stability | ±0.5% | |||||
Load stability | ±1% | |||||
Intput | AC voltage range | AC100~240V 47~63Hz | ||||
Current | 0.6A/115V 0.35A/230V | |||||
Efficiency | 77% | |||||
AC Inrush current | Cold-start current 18A/115V 30A/230V | |||||
Leakage current | < 0.5mA/240VAC | |||||
Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | ||||
Over voltage | 13.8~16.2V | |||||
200ms,100ms,30ms | ||||||
Safety | Setup,rise,hold up time | 200ms,100ms,30ms | ||||
Vibration | 10~500Hz,2G 10min,/1 cycle | |||||
Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | |||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
Environment | Temperature coefficient | ±0.03%/°C (0~50°C ) | ||||
Working temperature and humidity | -10°C ~+60°C,20%~90%RH | |||||
Store temperature and humidity | -20°C ~+85°C,10%~95%RH | |||||
Other | Overall dimension | 70×25×39 | ||||
Weight | 0.08Kg | |||||
Certificate | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 |
Application:
Audio equipment, Video equipment, Household appliances, Medical equipment, Communications equipment, etc..
Description:
1. Certificate: CE,Rohs,FCC,UL,TUV,CB
2. Quick delievery: 15 days
3. 2 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome
